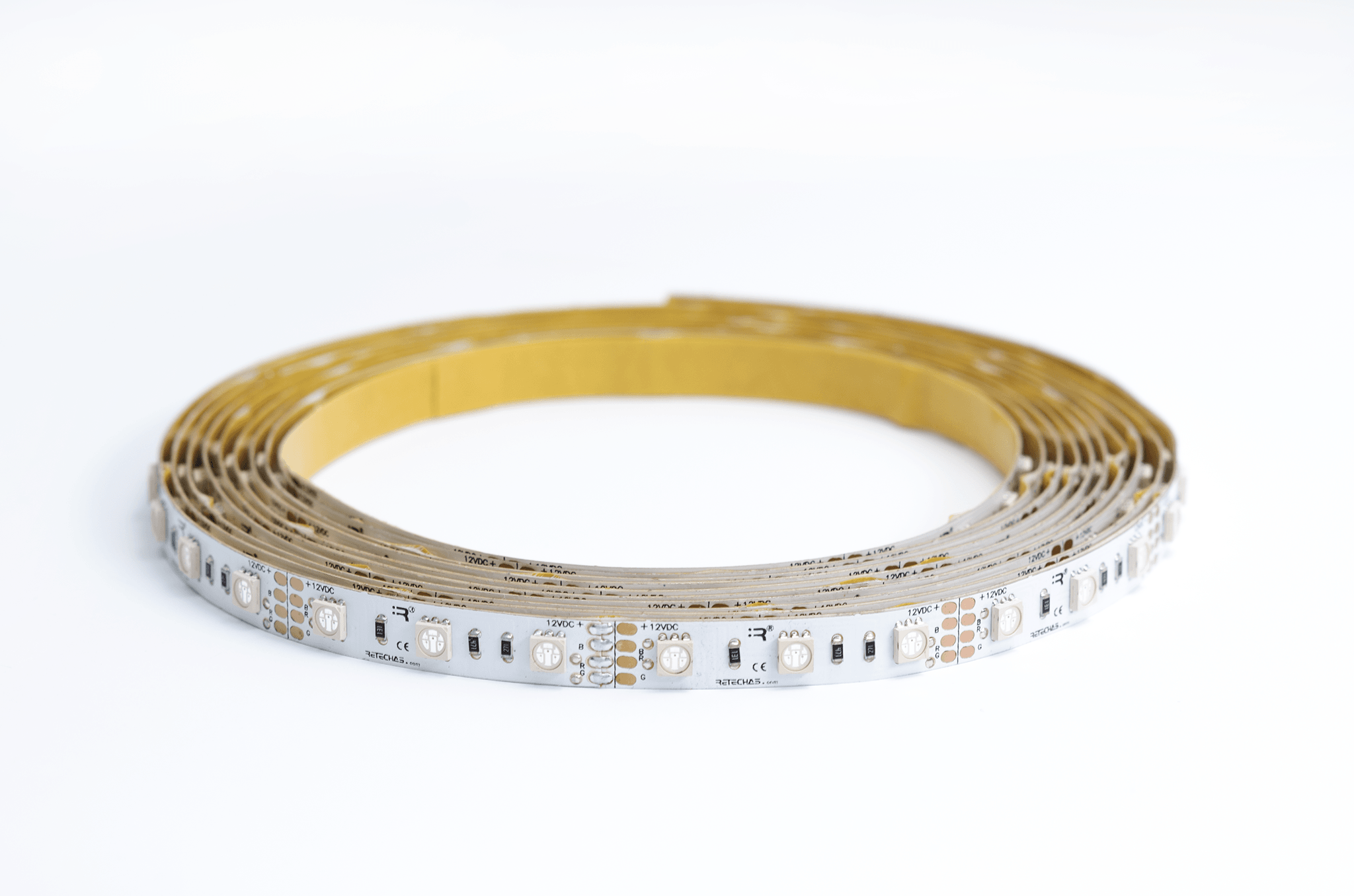

RGB 12W/m
 |
 |
 |
- Flexible, cuttable 12W/m LED strip, perfect for creating light installations;
- Product tested under various conditions by accredited laboratories;
- High quality LEDs are used, chosen for their great color mixing properties;
- LED strip made in EU;
- IP20 ir IP67 ratings available.

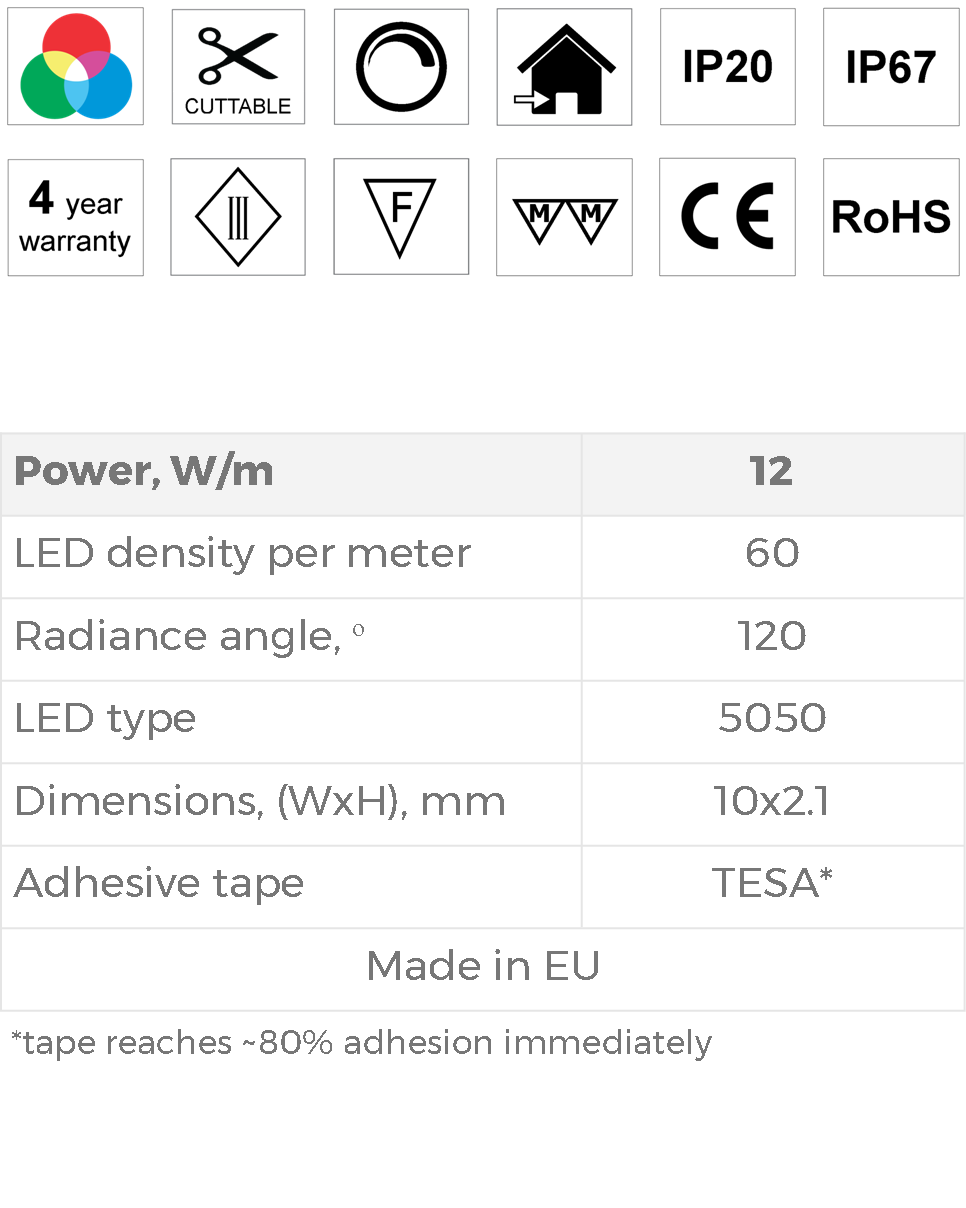

Electrical data
|
Item family code |
Nominal voltage |
Type of current |
Rated power |
|
RFX534RGB |
12 V |
DC |
12 W/m |
|
RFX534RGB-24 |
24 V |
DC |
12 W/m |

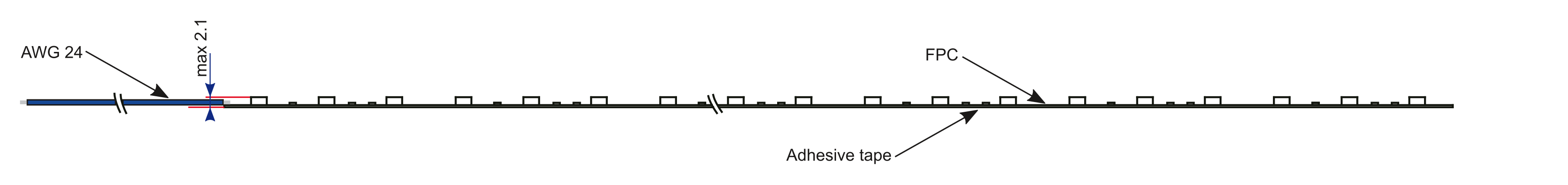

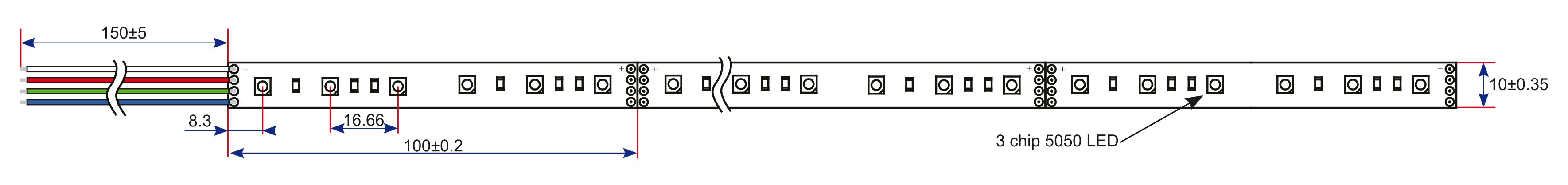

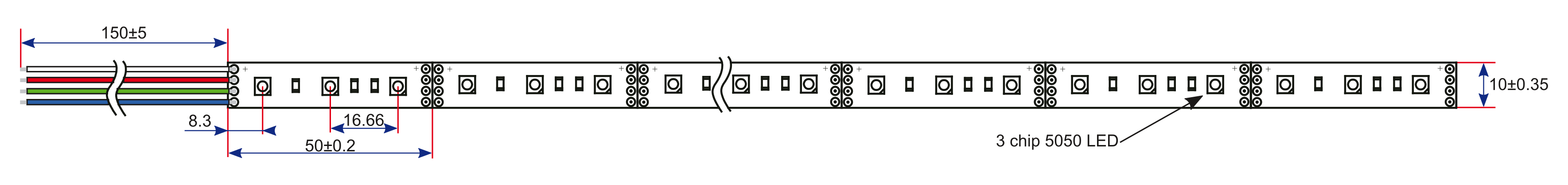

Dimensions
|
Item family code |
|
|
RFX534RGB |
 |
|
RFX534RGB-24 |
|
|
|
|
2 wires are soldered at both ends of reel in typical product assembly
Photometric data
|

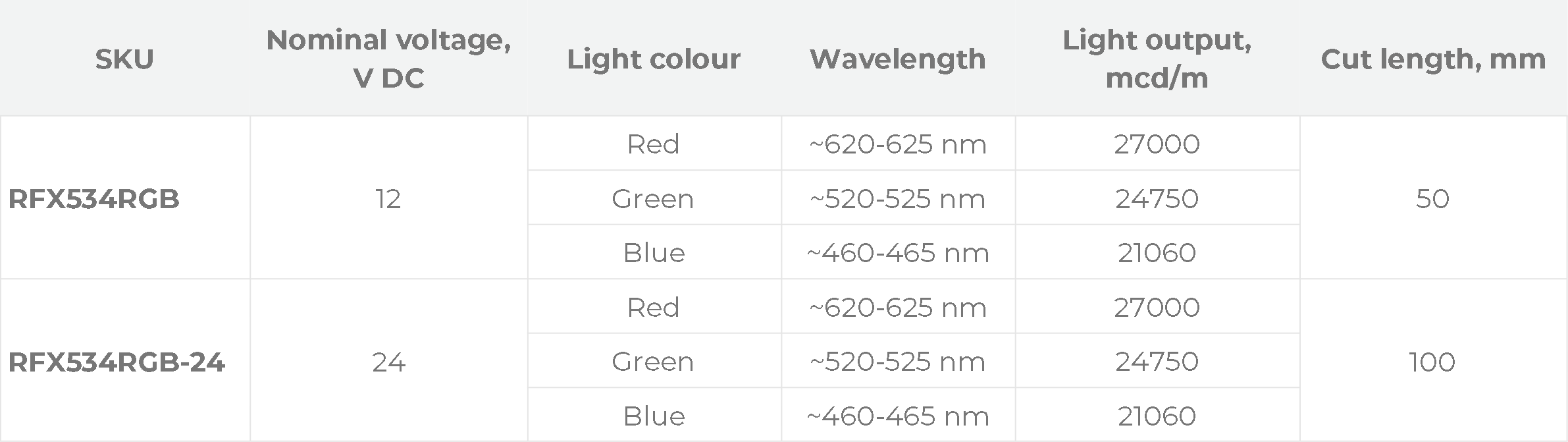

Item code |
Color description |
Wavelength, nm |
Light output * |
|
RFX534RGB RFX534RGB-24 |
Red |
~620-625 nm |
27000 mcd/m |
|
Green |
~520-525 nm |
24750 mcd/m |
|
|
Blue |
~460-465 nm |
21060 mcd/m |
Temperature conditions
|
Item family code |
Ambient working temperature, ta |
Product working temperature |
Storage temperature |
|
RFX534RGB RFX534RGB-24 |
-30C ~ +300C |
Less than 600C at room temperature 230C |
-40C ~ +850C |
Standards and declarations of conformity
Declarations of conformity: CE (RoHS is part of CE)
Meets standards: LST EN 60598-1:2009, IEC / EN 60068-2-14:2009, EN 62031:2008,
EN 62031:2008/A1:2013, EN 62031:2008/A2:2015, EN/IEC 60068-2-14:2009.
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006.
Packaging materials can be recycled according to EN 13430:2007
Cardboard box. Size 187*183*20mm
Cardboard reel. Size D=190mm h=15mm
LED strip length per reel—5 meters
Note: installation instructions are included in every box
All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.
Installation
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
