12W/m 120LED/m
 |
 |
 |
- Flexible, cuttable 12W/m LED strip, perfect for creating light installations;
- High quality light color conforming to latest EU lighting requirements;
- Product tested in certified laboratories;
- High quality Samsung LEDs;
- LED strip made in EU;
- 6 year manufacturers warranty (L80B10 ~55000 hrs. at 55°C LED strip temperature);
Electrical data
|
Item family code |
Nominal voltage |
Type of current |
Nominal current1 |
Rated power Pon1 |
|
1212S12 |
12 V |
DC |
1,04 A/m |
12,5 W/m |
|
1212S24 |
24 V |
0,52 A/m |
12,5 W/m |

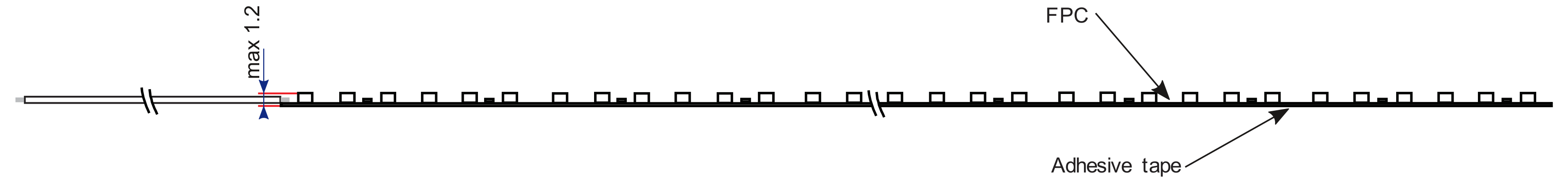

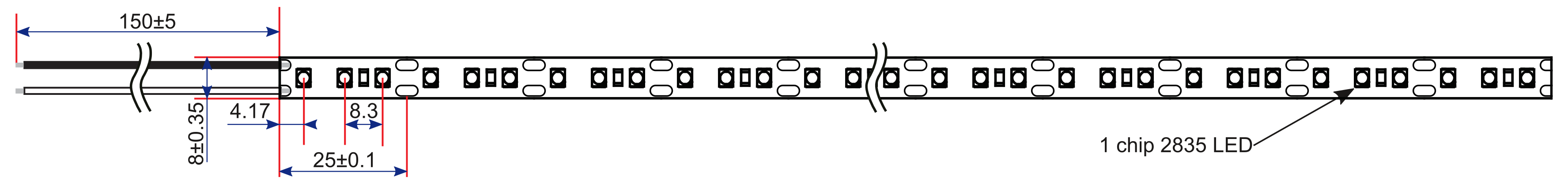

Dimensions
|
Item family code |
|
|
1212S12 |
|
|
1212S24 |
|
|
|
|

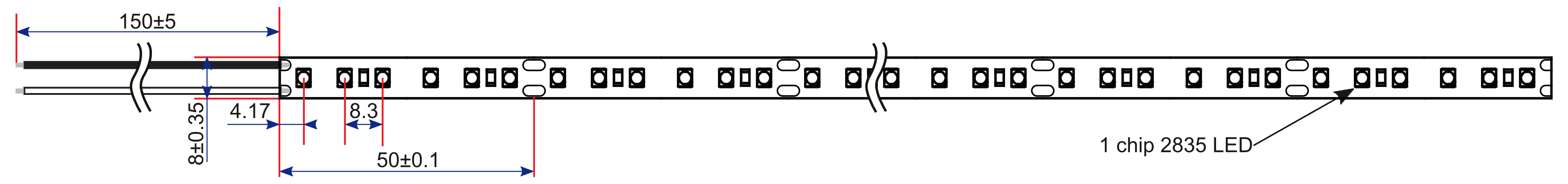

24V led strip can be cut every 50mm
Wires are soldered at both ends of reel in typical product assembly

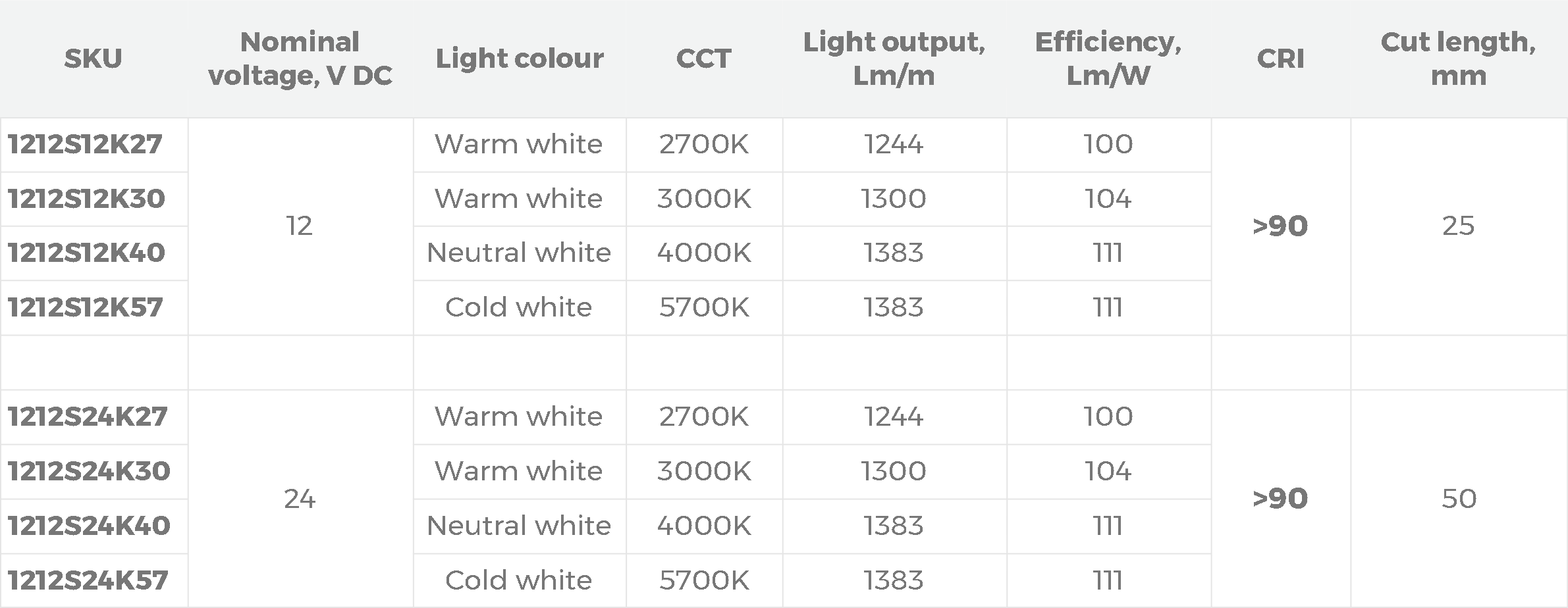

Photometric data
|
Item code |
CCT |
Color |
CRI |
Light output |
Efficiency |
|
1212S12K27 |
2700K |
Warm White |
>90 |
1244 lm/m |
100 lm/W |
|
1212S12K30 |
3000K |
Warm white |
1300 lm/m |
104 lm/W |
|
|
1212S12K40 |
4000K |
Neutral white |
1383 lm/m |
111 lm/W |
|
|
1212S12K57 |
5700K |
Cool White |
1383 lm/m |
111 lm/W |
|
|
|
|
|
|
|
|
|
1212S24K27 |
2700K |
Warm white |
>90 |
1244 lm/m |
100 lm/W |
|
1212S24K30 |
3000K |
Warm white |
1300 lm/m |
104 lm/W |
|
|
1212S24K40 |
4000K |
Neutral white |
1383 lm/m |
111 lm/W |
|
|
1212S24K57 |
5700K |
Cool White |
1383 lm/m |
111 lm/W |
Temperature conditions
|
Item family code |
Ambient working temperature, ta |
Product working temperature |
Storage temperature |
|
1212S12 |
-30C ~ +300C |
Less than 600C at 230C ambient temperature |
-40C ~ +850C |
|
1212S24 |
Standards and declarations of conformity
Declarations of conformity: CE (RoHS is part of CE)
Meets standards: LST EN 60598-1:2015+AC:2016+A1:2018 (9.2.7cl.,9.2.8cl.), EN 60068-2-14:2009 (IEC 60068-2-14:2009), EN 62031:2008+A1:2013+A2:2015.
Important: Product is assembled using LEDs that have been tested according to LM-80 for no less than 10000 hours.
Energy label and marking
|
Item code |
EPREL code |
Energy class |
Symbol |
|
1212S12K27 |
997286 |
F |
|
|
1212S24K27 |
997642 |
||
|
1212S12K30 |
880314 |
F |
|
|
1212S24K30 |
997858 |
||
|
1212S12K40 |
997611 |
F |
|
|
1212S24K40 |
997871 |
||
|
1212S12K57 |
997618 |
F |
|
|
1212S24K57 |
997880 |
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006.
Packaging materials can be recycled according to EN 13430:2007.
Packaging:
- Cardboard box. Size 120*121*20mm
- Cardboard reel. Size D=118mm h=15mm
Alternative packaging:
- Cardboard box. Size 180*182*20mm
- Cardboard reel. Size D=178mm h=15mm
LED strip length per reel—5m
Note: installation instructions are included in every box
All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.
Installation
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
