8W/m

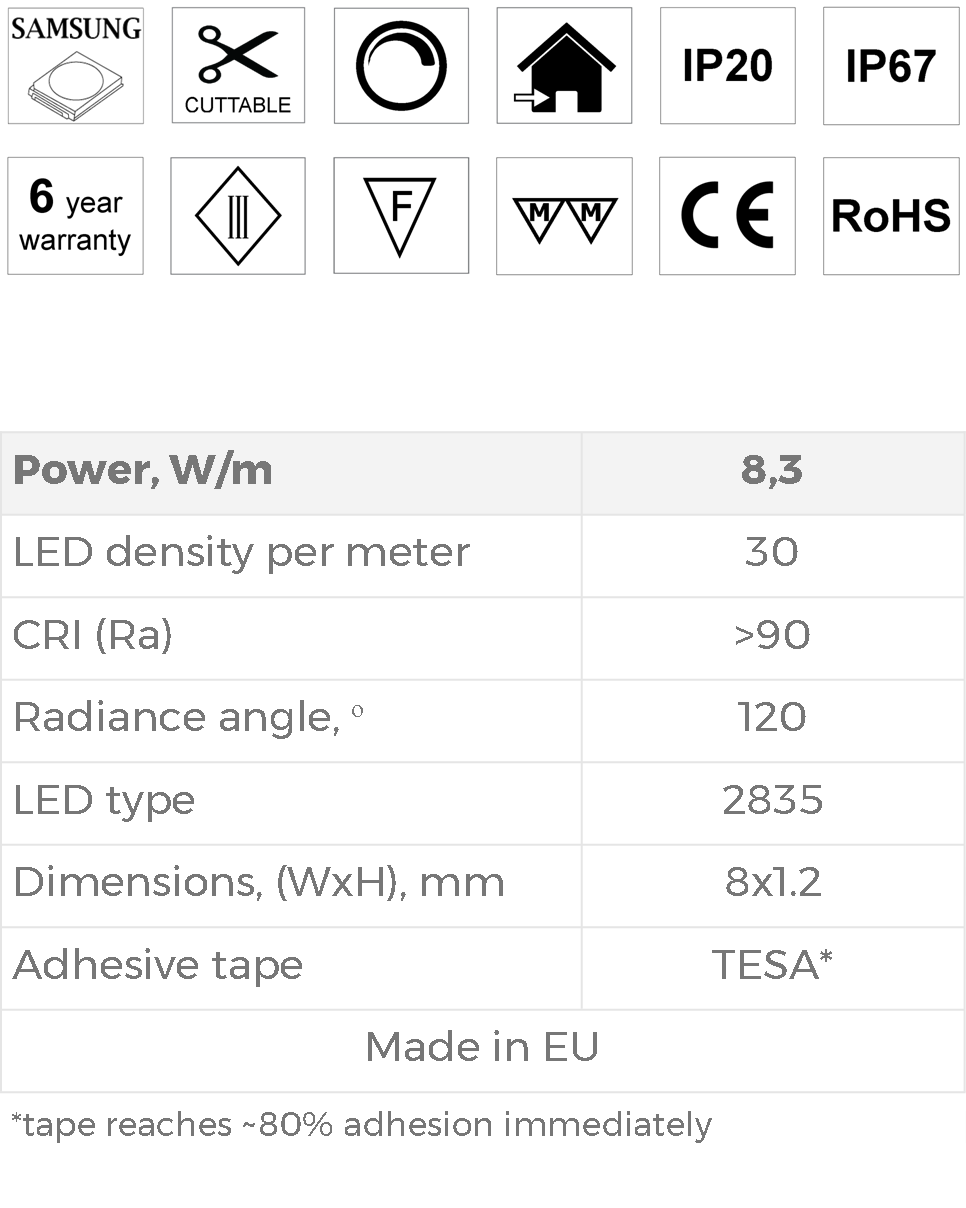

Product description
  • Flexible, cuttable 8W/m LED strip, perfect for creating light installations;
  • High quality light color conforming to latest EU lighting requirements;
  • Product tested in certified laboratories;
  • High quality Samsung LEDs;
  • LED strip made in EU;
  • 6 year manufacturers warranty (L70 >54 000 val.);
  • IP20 ir IP67 ratings available.

Other information

Electrical data

Item family code

Nominal voltage

Type of current

Nominal current

Rated power

830s12

12 V

DC

0,66  A/m

8 W/m

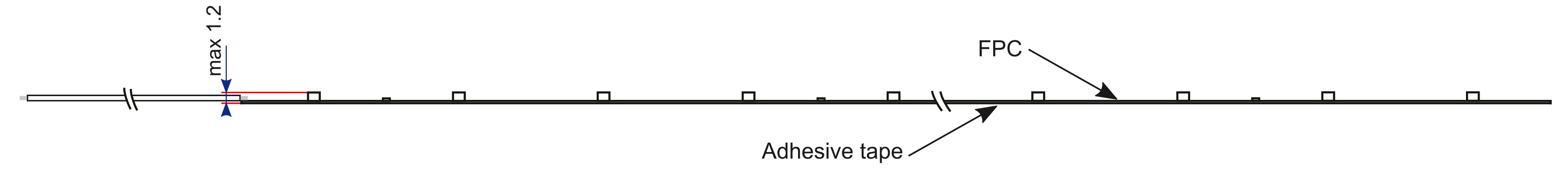

Dimensions

Item family code

830s12

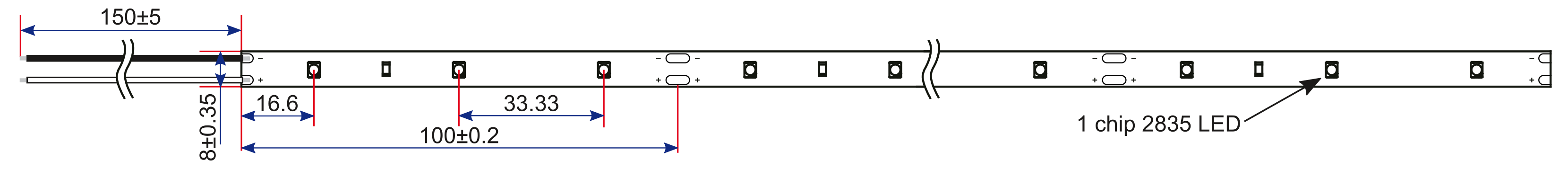

1 LED strip can be cut every 100 mm
2 wires are soldered at both ends of reel in typical product assembly

Photometrical data CRI >80

Item code

CCT

Color

CRI

Light output

Efficiency

830s12-27

2700 K

Warm white

>80

803 lm/m

100 lm/W

830s12-30

3000K

Warm white

819 lm/m

102 lm/W

830s12-40

4000K

Neutral white

867 lm/m

108 lm/W

830s12-57

5700K

Cool white

880 lm/m

110 lm/W

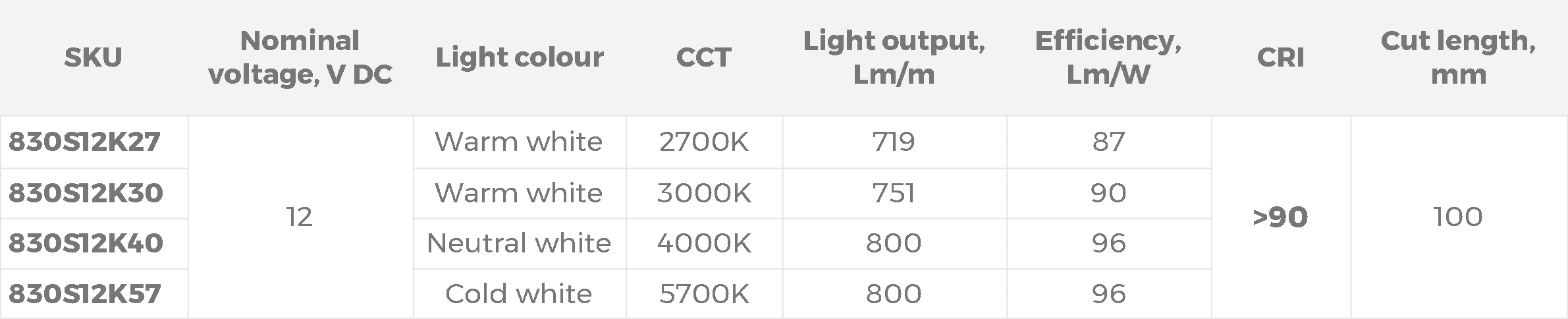

Photometrical data CRI>90

Item code

CCT

Color

CRI

Light output

Efficiency

830s12K30

3000K

Warm white

>90

690 lm/m

86 lm/W

830s12K40

4000K

Neutral white

722 lm/m

90 lm/W

Temperature conditions

Item family code

Ambient working temperature, ta

Product working temperature

Storage temperature

830S12

-30C ~ +300C

Less than 600C  at room temperature 230C

-40C ~ +850C

Standards and declarations of conformity

Declarations of conformity: CE (RoHS is part of CE)

Meets standards: LST EN 60598-1:2009, IEC / EN 60068-2-14:2009, EN 62031:2008, EN 62031:2008/A1:2013, EN 62031:2008/A2:2015, EN/IEC 60068-2-14:2009       .

Important: Product is assembled using LED packages that are tested using LM-80 for no less than 9000 hours

Standard packaging

Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007

Carton box. Size 187*183*20mm

Carton reel. Size D=190mm h=15mm

LED strip length per reel—5 meters

Note: installation instructions are included in every box

All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.

Installation

1. Cut the required amount of LED strip (see cut recommendations in Table 1).

2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.

3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.

NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.

4.  Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.

Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
