6W/m 60LED/m

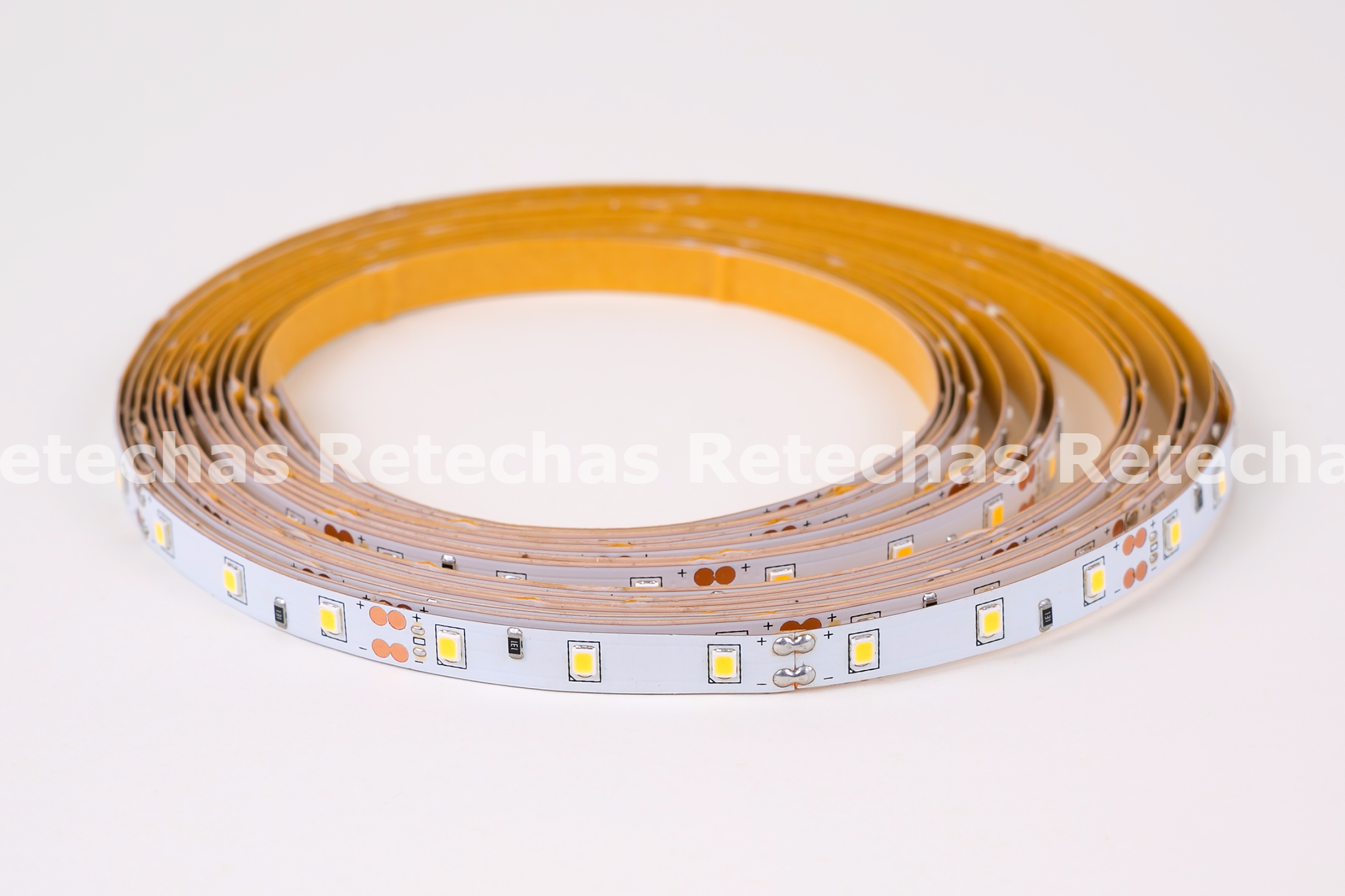

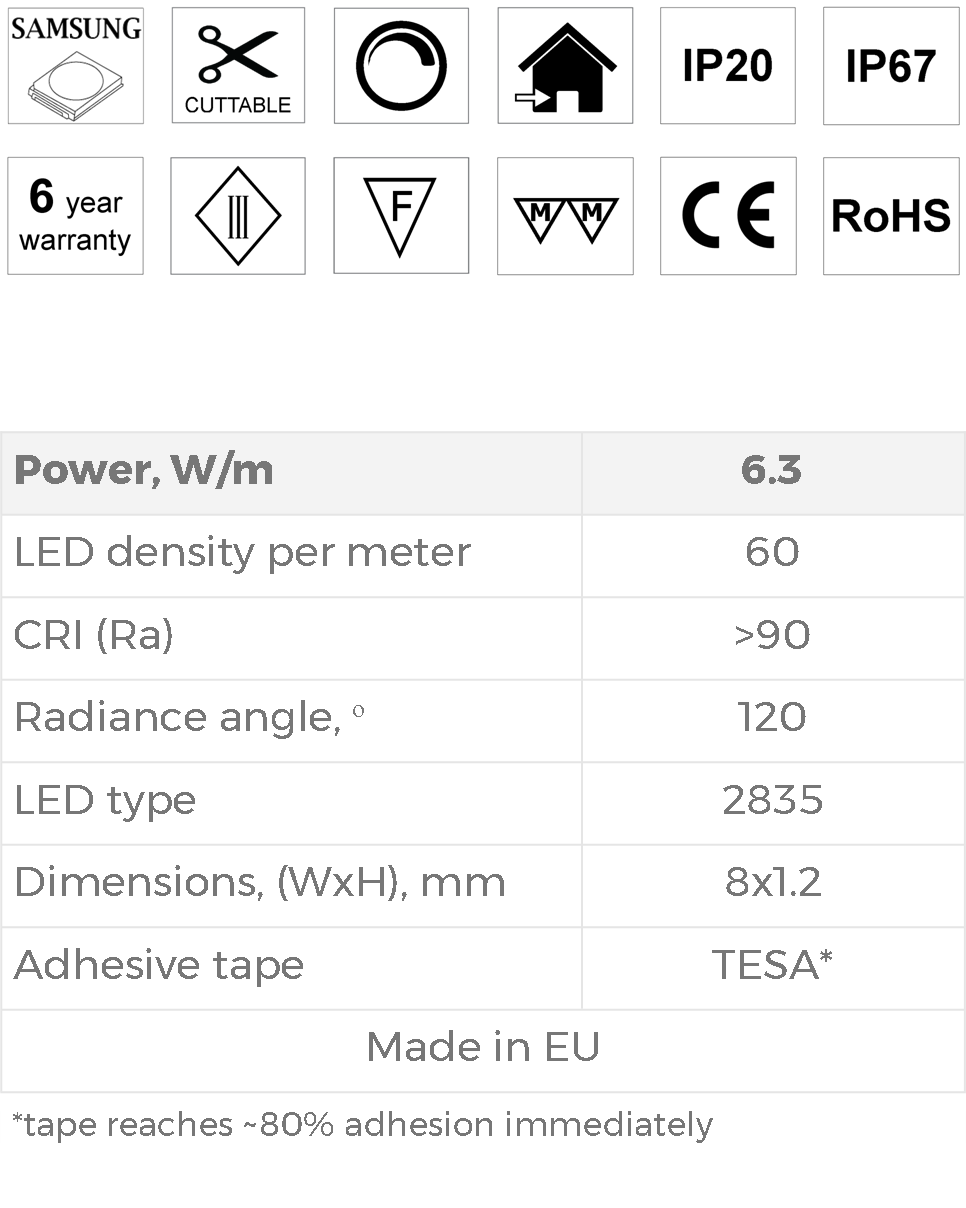

Product description
  • Flexible, cuttable 6W/m LED strip, perfect for creating light installations;
  • High quality light color conforming to latest EU lighting requirements;
  • Product tested in certified laboratories;
  • High quality Samsung LEDs;
  • LED strip made in EU;
  • 6 year manufacturers warranty (L80B10 ~55000hrs. at 55°C LED strip temperature);

Other information

Electrical data

Item family code

Nominal voltage

Type of current

Nominal current1

Rated power Pon1

660S12

12 V

DC

0,53  A/m

6,3 W/m

660S24

24 V

0,26  A/m

6,3 W/m

1. Tolerance +/-5%; Data specified when product temperature is at 450C

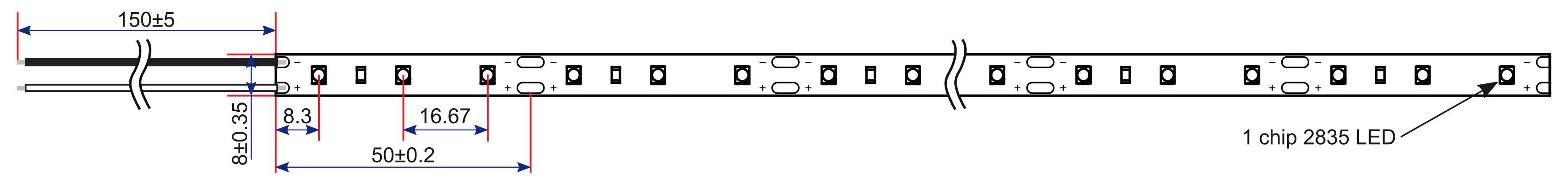

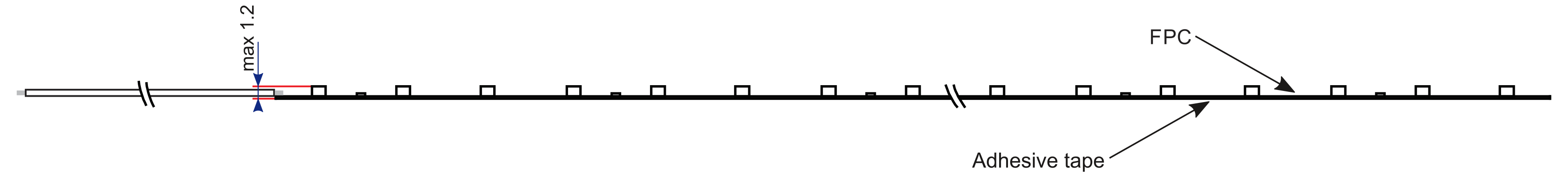

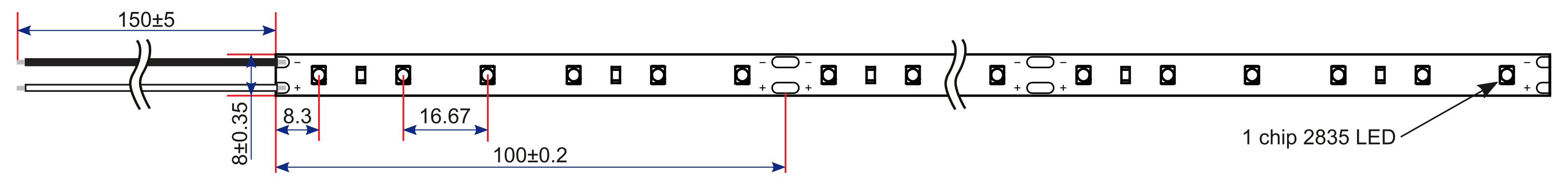

Dimensions

Item family code

660S12

660S24



12V led strip can be cut every 50 mm
24V led strip can be cut every 100mm
Wires are soldered at both ends of reel in typical product assembly

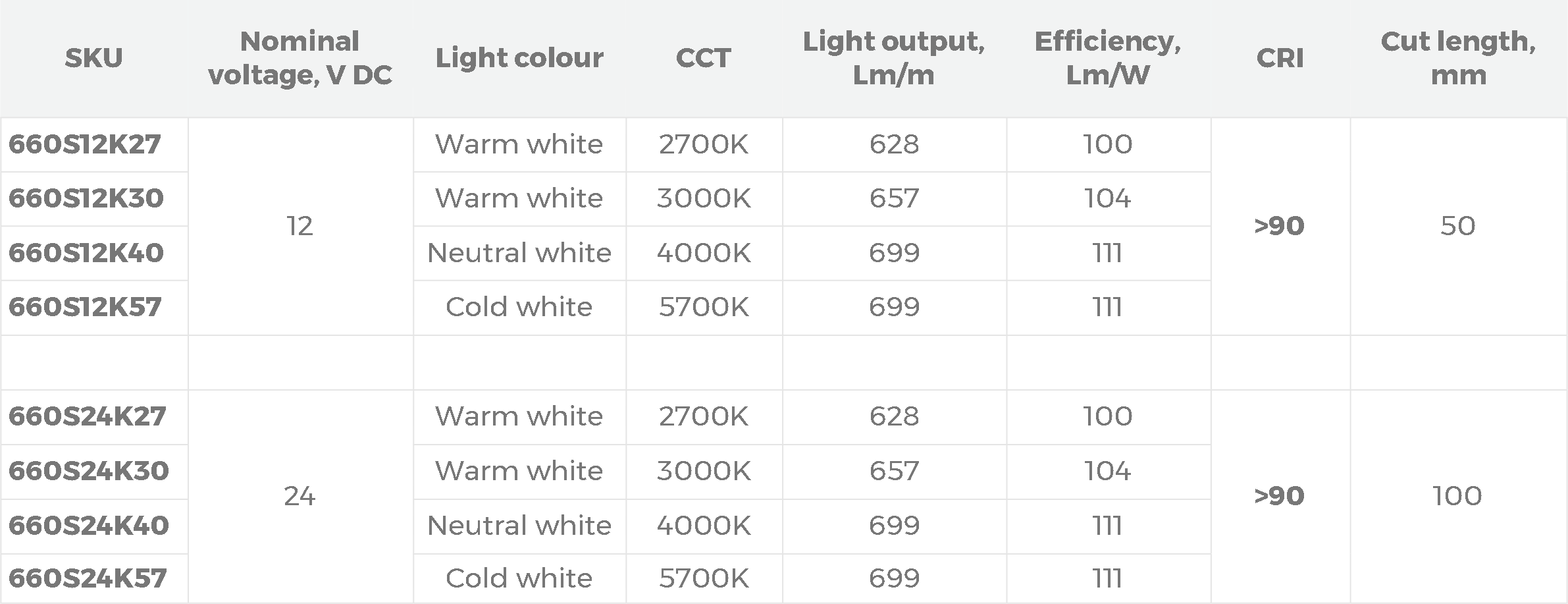

Photometric data

Item code

CCT

Color

CRI

Useful luminous
flux Φuse2

Efficiency2

660S12K27

2700K

Warm white

>90

628 lm/m

100 lm/W

660S12K30

3000K

Warm white

657 lm/m

104 lm/W

660S12K40

4000K

Neutral white

699 lm/m

111 lm/W

660S12K57

5700K

Cool White

699 lm/m

111 lm/W













660S24K27

2700K

Warm white

>90

628 lm/m

100 lm/W

660S24K30

3000K

Warm white

657 lm/m

104 lm/W

660S24K40

4000K

Neutral white

699 lm/m

111 lm/W

660S24K57

5700K

Cool White

699 lm/m

111 lm/W

2. Tolerance +/-10%; Data specified when product temperature is at 450C

Temperature conditions

Item family code

Ambient working temperature, ta

Product working temperature

Storage temperature

660S12

-30C ~ +300C

Less than 600C at 230C ambient temperature

-40C ~ +850C

660S24

Standards and declarations of conformity

Declarations of conformity: CE (RoHS is part of CE)

Meets standards: LST EN 60598-1:2015+AC:2016+A1:2018 (9.2.7cl.,9.2.8cl.), EN 60068-2-14:2009 (IEC 60068-2-14:2009), EN 62031:2008+A1:2013+A2:2015.

Important: Product is assembled using LEDs that have been tested according to LM-80 for no less than 10000 hours.

Energy label and marking

Item code

EPREL code

Energy class

Symbol

660S12K27

998076

F



660S24K27

998082

660S12K30

998077

F



660S24K30

998083

660S12K40

998079

F



660S24K40

998086

660S12K57

998081

F



660S24K57

998088

Standard packaging

Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006.
Packaging materials can be recycled according to EN 13430:2007

Packaging:

  • Cardboard box. Size 120*121*20mm
  • Cardboard reel. Size D=118mm h=15mm

Alternative packaging:

  • Cardboard box. Size 180*182*20mm
  • Cardboard reel. Size D=178mm h=15mm

LED strip length per reel—5 meters

Note: installation instructions are included in every box

All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.

Installation

1. Cut the required amount of LED strip (see cut recommendations in Table 1).

2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.

3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.

NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.

4.  Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.

Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
