18W/m 120LED/m



Product description

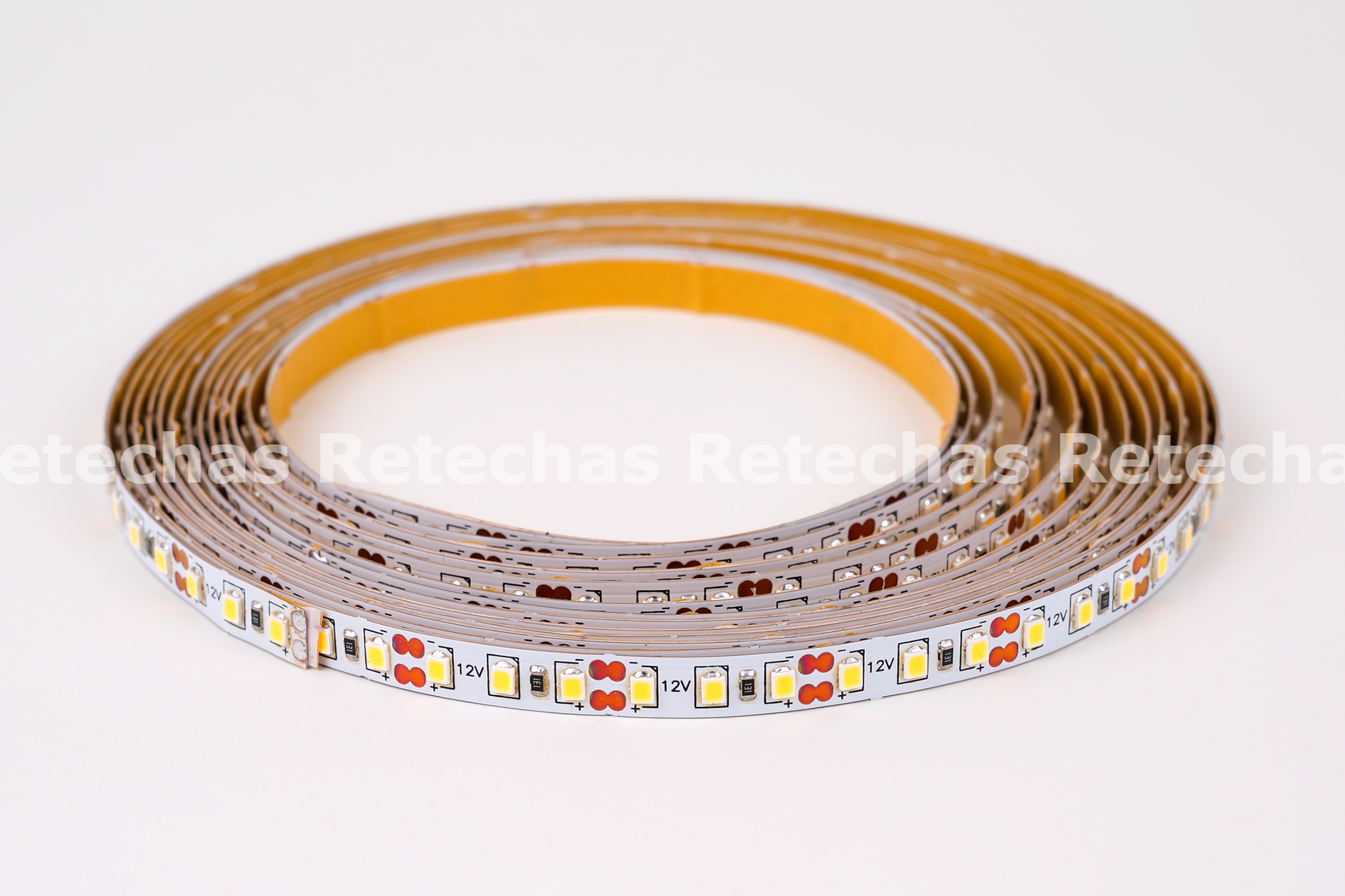

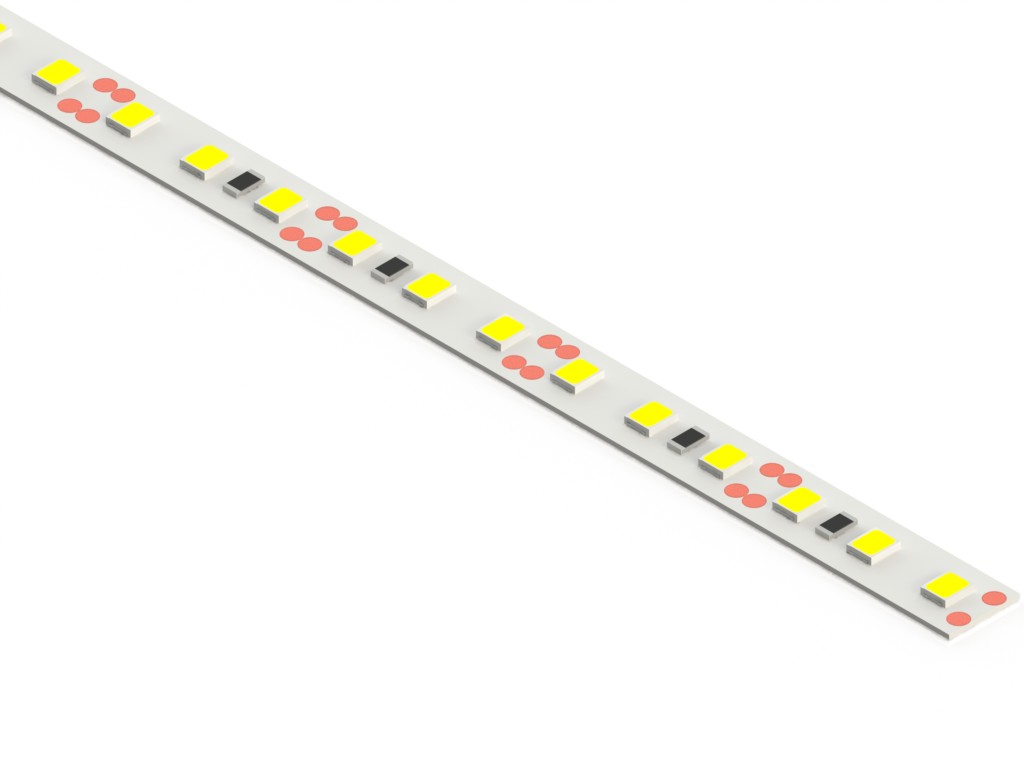

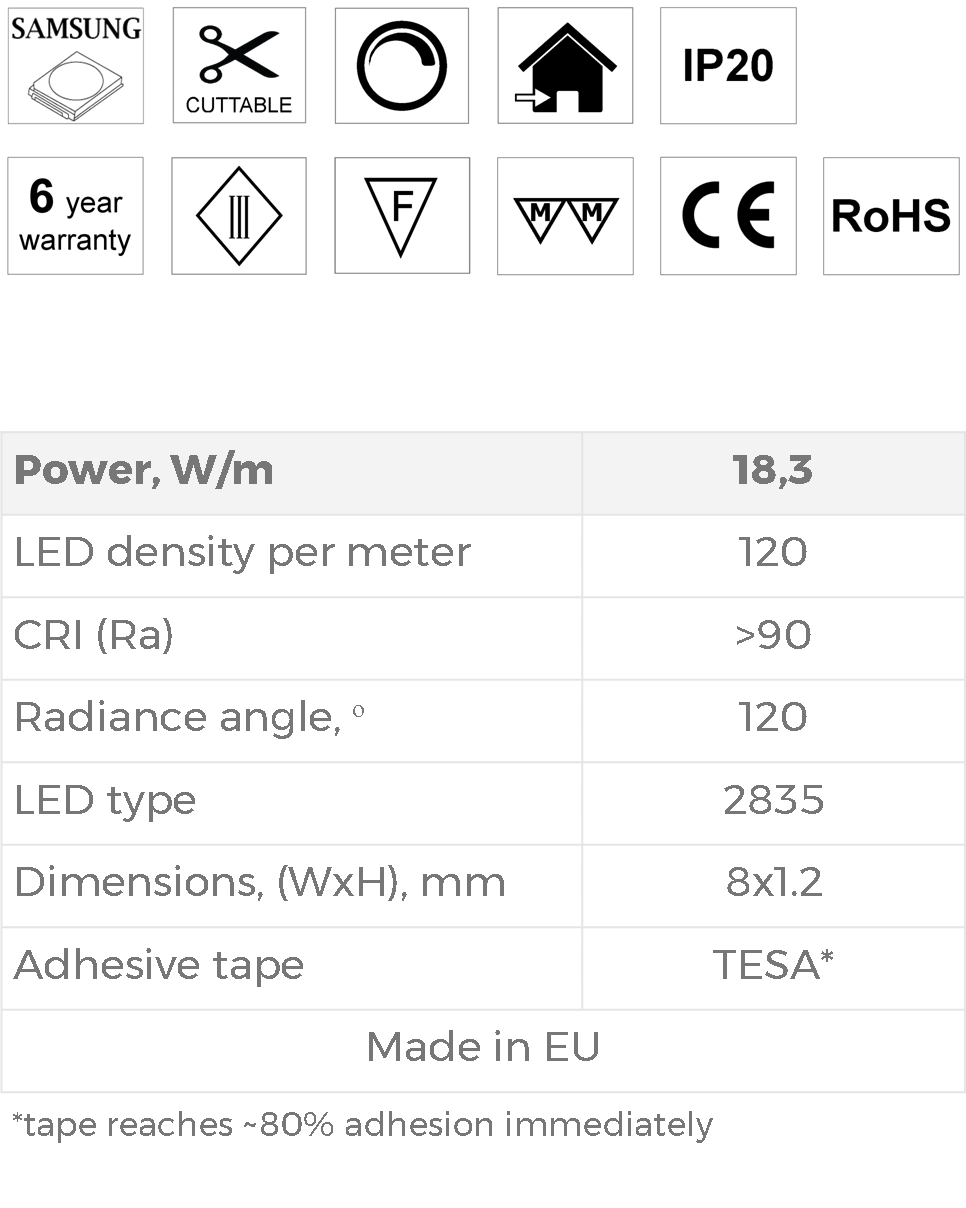

  • Flexible, cuttable 18W/m LED strip, perfect for creating light installations;
  • High quality light color conforming to latest EU lighting requirements;
  • Product tested in certified laboratories;
  • High quality Samsung LEDs;
  • LED strip made in EU;
  • 6 year manufacturers warranty (L80B10 ~55000 hrs. at 55°C LED strip temperature);

Other information

Electrical data

Item family code

Nominal voltage

Type of current

Nominal current1

Rated power Pon1

1812S12

12 V

DC

1,53 A/m

18,3 W/m

1812S24

24 V

0,76 A/m

18,3 W/m

1. Tolerance +/-5%; Data specified when product temperature is at 450C

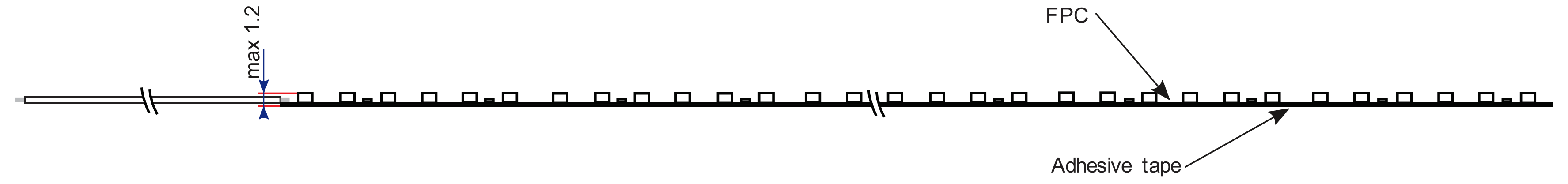

Dimensions

Item family code

1812S12

1812S24

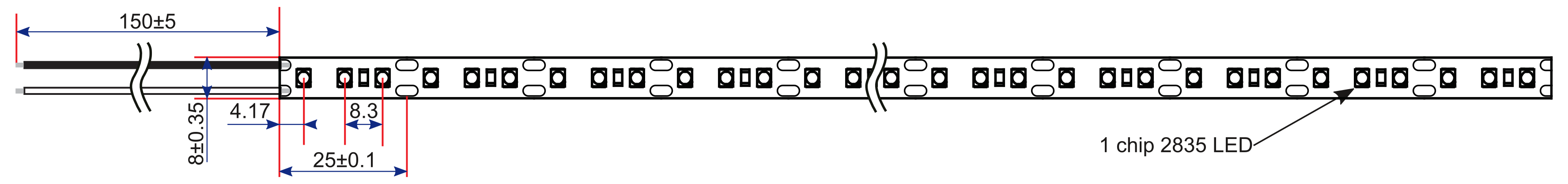

12V led strip can be cut every 25 mm

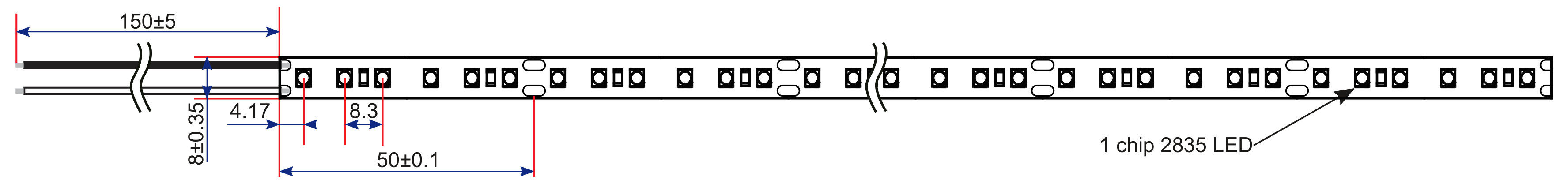

24V led strip can be cut every 50mm
Wires are soldered at both ends of reel in typical product assembly

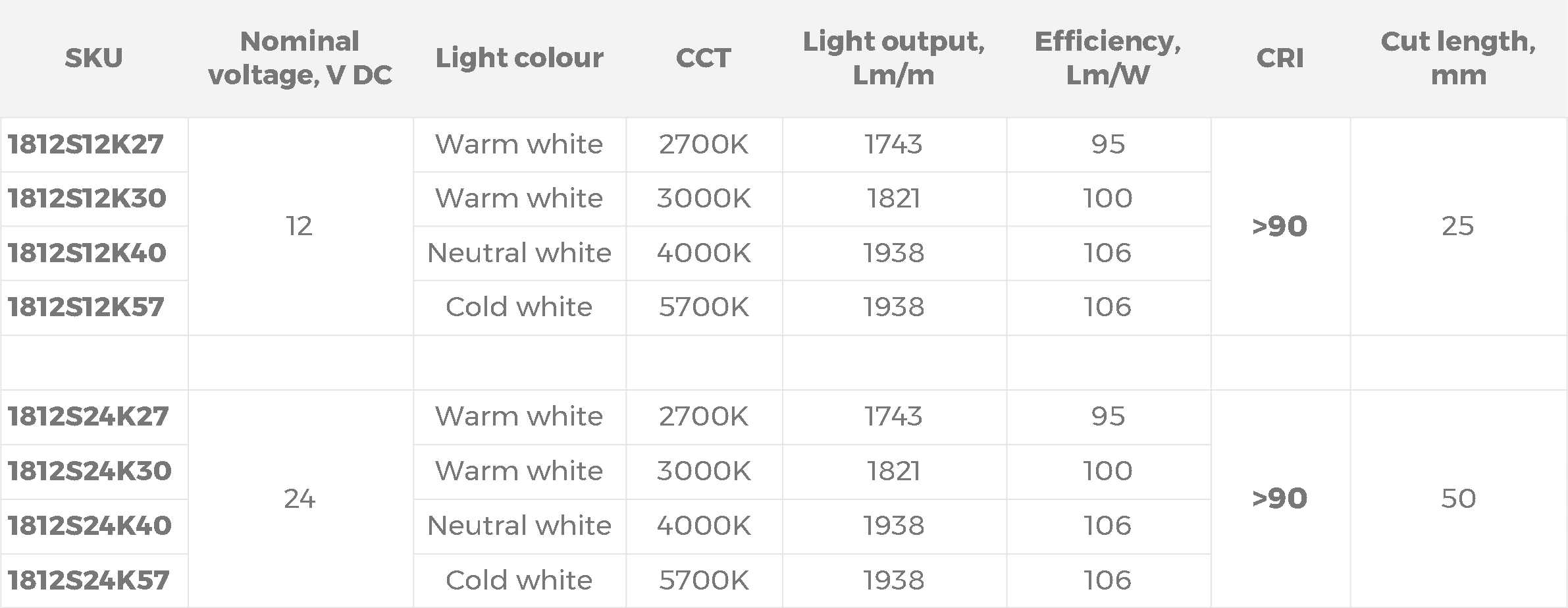

Photometric data

Item code

CCT

Color

CRI

Light output

Efficiency

1812S12K27

2700K

Warm white

>90

1743 lm/m

95 lm/W

1812S12K30

3000K

Warm white

1821 lm/m

100 lm/W

1812S12K40

4000K

Neutral white

1938 lm/m

106 lm/W

1812S12K57

5700K

Cool White

1938 lm/m

106 lm/W













1812S24K27

2700K

Warm white

>90

1743 lm/m

95 lm/W

1812S24K30

3000K

Warm white

1821 lm/m

100 lm/W

1812S24K40

4000K

Neutral white

1938 lm/m

106 lm/W

1812S24K57

5700K

Cool White

1938 lm/m

106 lm/W

2. Tolerance +/-10%; Data specified when product temperature is at 450C

Temperature conditions

Item family code

Ambient working temperature, ta

Product working temperature

Storage temperature

1812S12

-30C ~ +300C

Less than 600C at 230C ambient temperature

-40C ~ +850C

1812S24

Standards and declarations of conformity

Declarations of conformity: CE (RoHS is part of CE)

Meets standards: LST EN 60598-1:2015+AC:2016+A1:2018 (9.2.7cl.,9.2.8cl.), EN 60068-2-14:2009 (IEC 60068-2-14:2009), EN 62031:2008+A1:2013+A2:2015.

Important: Product is assembled using LEDs that have been tested according to LM-80 for no less than 10000 hours.

Energy label and marking

Item code

EPREL code

Energy class

Symbol

1812S12K27

997988

F



1812S24K27

998015

1812S12K30

997997

F



1812S24K30

998018

1812S12K40

997998

F



1812S24K40

998026

1812S12K57

998008

F



1812S24K57

998034

Standard packaging

Product packaging is designed and manufactured based on: EN 13427:2006.
Packaging materials can be recycled according to EN 13430:2007.

Packaging:

  • Cardboard box. Size 120*121*20mm
  • Cardboard reel. Size D=118mm h=15mm

Alternative packaging:

  • Cardboard box. Size 180*182*20mm
  • Cardboard reel. Size D=178mm h=15mm

LED strip length per reel—5 meters

Note: installation instructions are included in every packaging

All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.

Installation

1. Cut the required amount of LED strip (see cut recommendations in Table 1).

2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.

3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.

NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.

4.  Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.

Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
