Flexible, cuttable 12W/m LED strip, perfect for creating light installations
High quality light color conforming to latest EU lighting requirements
Product tested in certified laboratories
High quality Bridgelux LEDs
LED strip made in EU
6 year manufacturer's warranty (L80B10 ~55,000 hrs. at 55°C LED strip temperature)

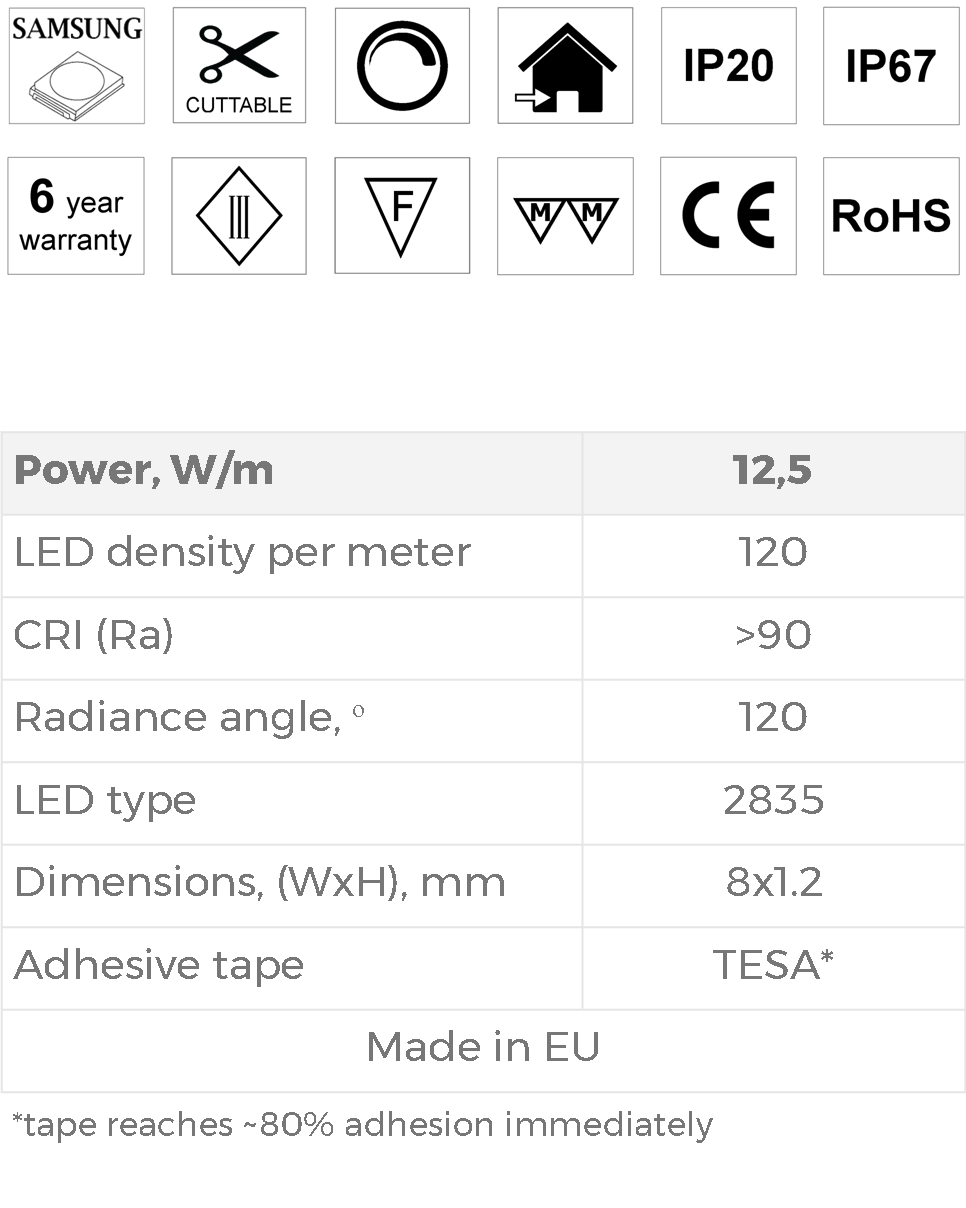

Specification

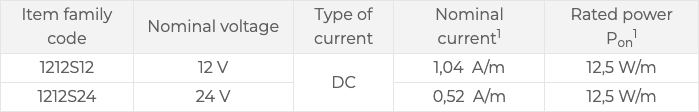

Electrical data

Item family codeNominal voltageType of currentNominal current¹Rated power P_on¹1212S1212 VDC1.04 A/m12.5 W/m1212S2424 VDC0.52 A/m12.5 W/m

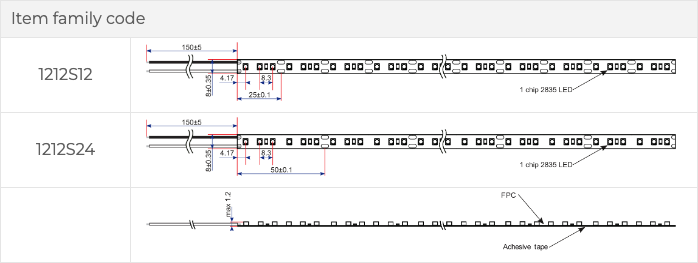

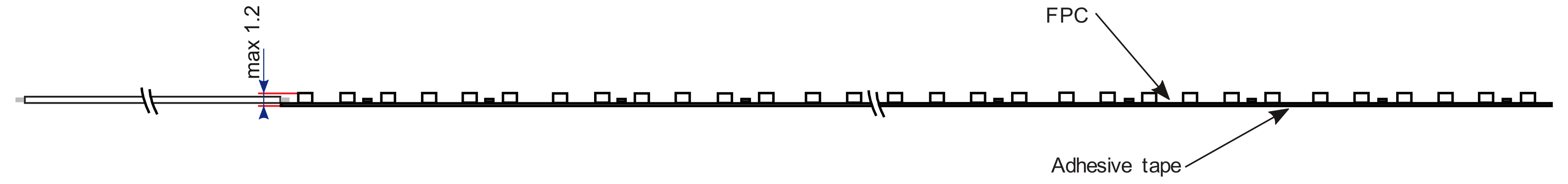

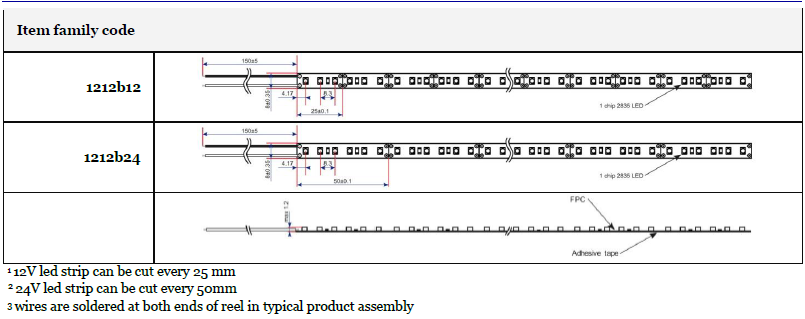

Dimensions

Item family code: 1212S12, 1212S24

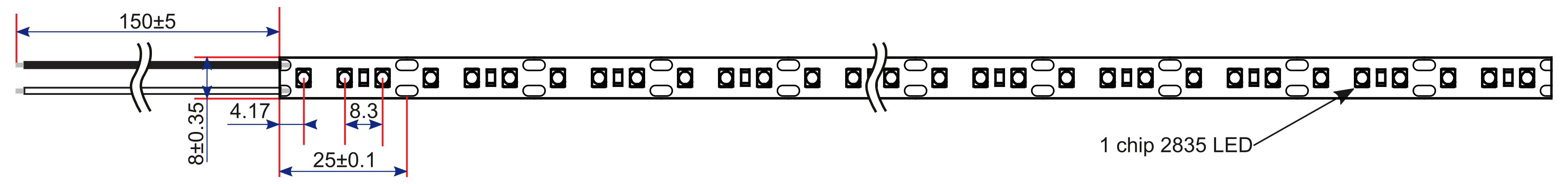

12V LED strip can be cut every 25 mm

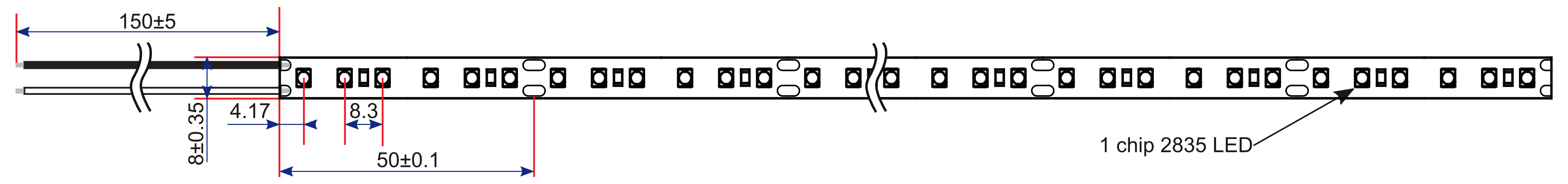

24V LED strip can be cut every 50mm

Wires are soldered at both ends of reel in typical product assembly

Standard packaging

Product packaging is designed and manufactured based on: EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007.

Packaging: Cardboard box. Size 120*121*20mm

Cardboard reel. Size D=118mm h=15mm

Alternative packaging: Cardboard box. Size 180*182*20mm

Cardboard reel. Size D=178mm h=15mm

LED strip length per reel—5m

Note: installation instructions are included in every box

All information is provided considering 1 meter length. Real life performance may fluctuate due to tolerances in components used in manufacturing.

Install

1. Cut the required amount of LED strip (see cut recommendations in Table 1).

2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.

3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.

NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.

4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.

Connect LED strip to a power supply in accordance with polarity and presented connections schemes.

‍
