RGB 12W/m
Flexible, cuttable 12W/m RGB LED strip with high quality LEDs, made in EU, IP20 and IP67 ratings available.
- Flexible, cuttable 12W/m LED strip, designed for lighting installations
- Product tested under various conditions by accredited laboratories
- High quality LEDs are used, chosen for their great color mixing properties
- LED strip made in EU
- IP20 and IP67 ratings available

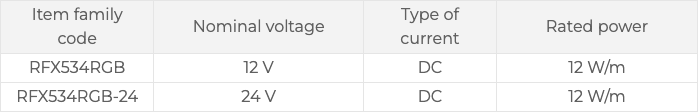

Electrical data
Item family codeNominal voltageType of currentRated powerRFX534RGB12 VDC12 W/mRFX534RGB-2424 VDC12 W/m
Dimensions
RFX534RGB: 12V LED strip can be cut every 50 mm
RFX534RGB-24: 24V LED strip can be cut every 100 mm
Wires are soldered at both ends of reel

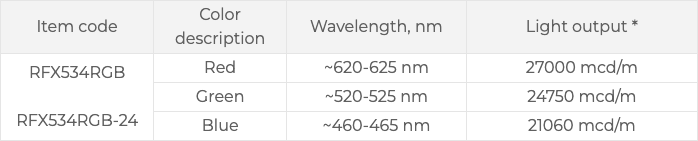

Photometric data
Item codeColorWavelengthLight intensity*RFX534RGB / RFX534RGB-24Red~620-625 nm27000 mcd/mGreen~520-525 nm24750 mcd/mBlue~460-465 nm21060 mcd/m
Temperature conditions
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007.
Cardboard box. Size 187*183*20mm
Cardboard reel. Size D=190mm h=15mm
LED strip length per reel—5m
Note: installation instructions are included in every box
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
