RGB+W 24W/m
Flexible 24W/m RGB+W LED strip with Samsung LEDs, designed for color and white lighting with 4-year warranty.

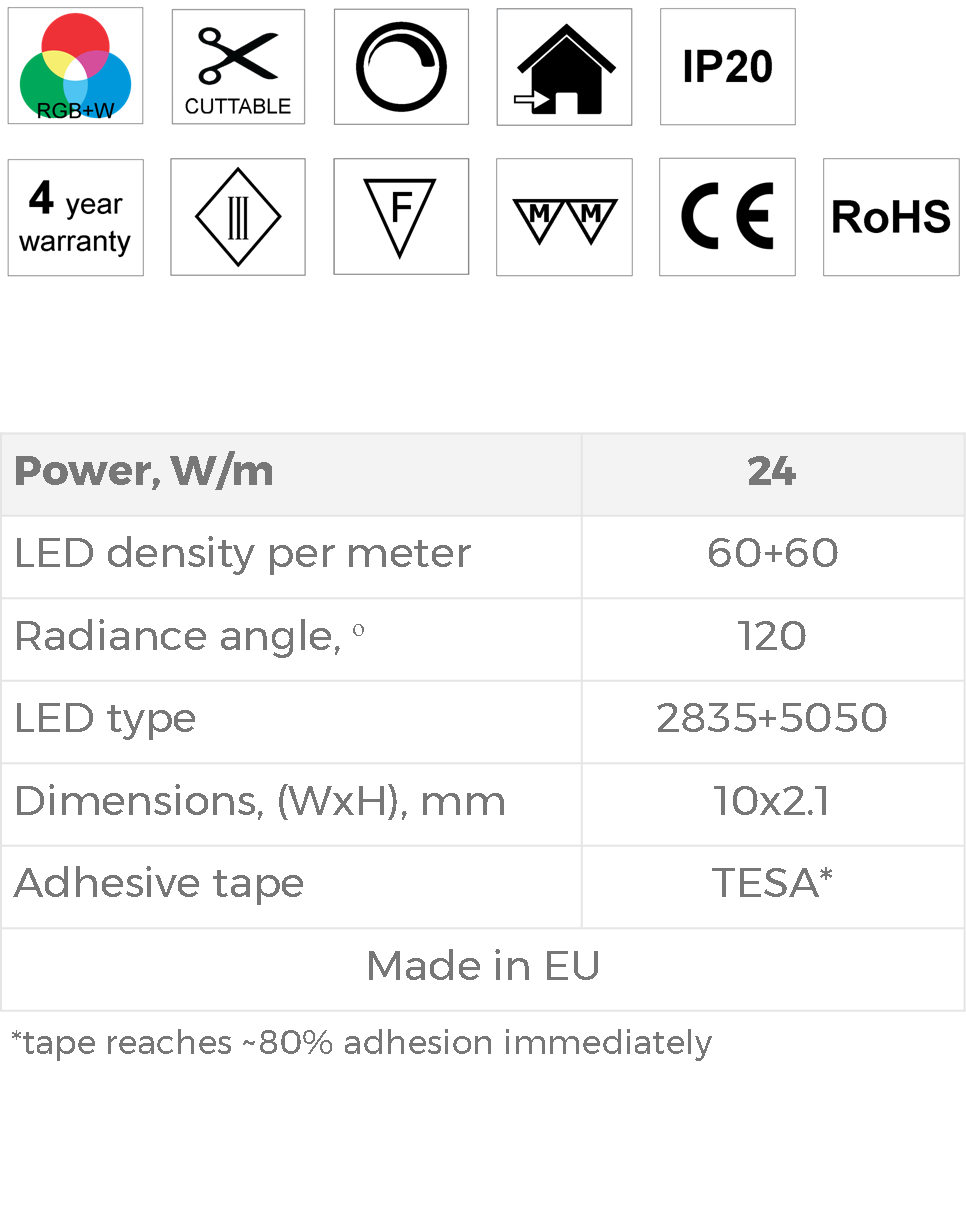

- Flexible, cuttable 24W/m RGB+W LED strip, designed for lighting installations
- High quality Samsung SMD LEDs used for white light
- RGB LEDs chosen for their great color mixing properties
- 4-year manufacturer's warranty (L70 > 36,000 h)
- LED strip made in EU
Electrical data
Item family codeNominal voltageType of currentNominal currentRated powerRGB534-2424 VDC1 A/m24 W/m

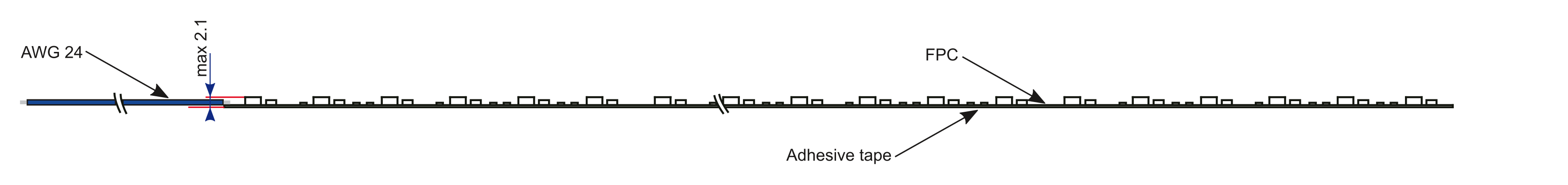

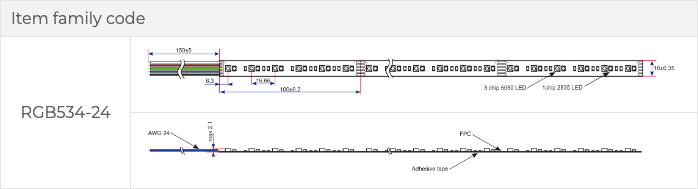

Dimensions
Item family code: RGB534-24

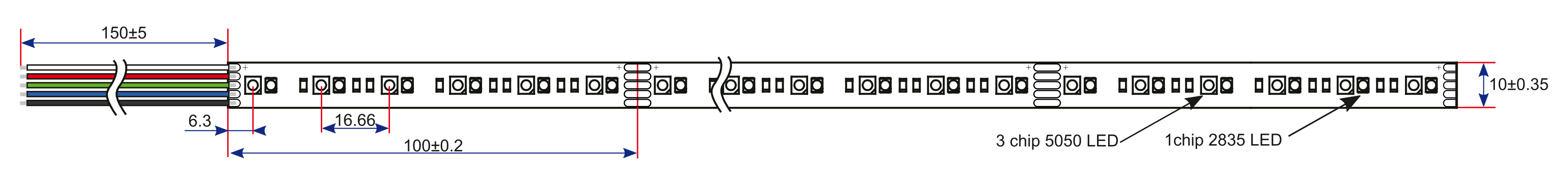

24V LED strip can be cut every 100 mm
Wires are soldered at both ends of reel

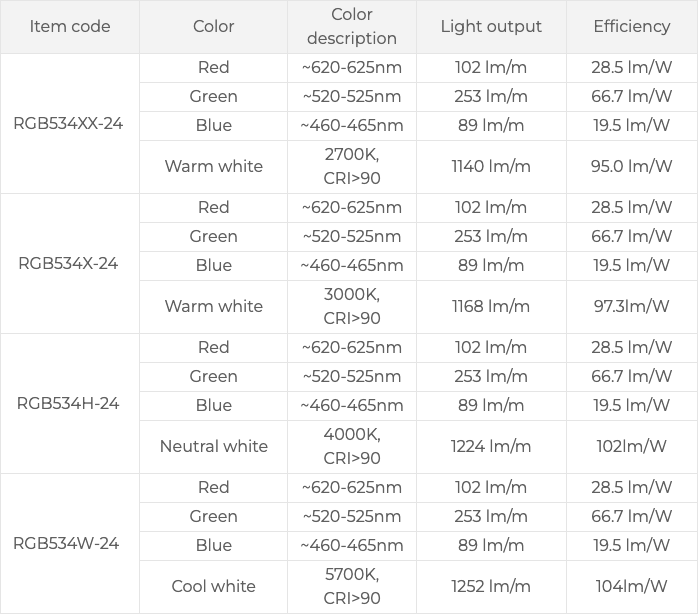

Photometric data
Item codeColorColor descriptionLight outputEfficiencyRGB534XX-24Red~620-625nm102 lm/m28.5 lm/WGreen~520-525nm253 lm/m66.7 lm/WBlue~460-465nm89 lm/m19.5 lm/WWarm white2700K, CRI>901140 lm/m95.0 lm/WRGB534X-24Red~620-625nm102 lm/m28.5 lm/WGreen~520-525nm253 lm/m66.7 lm/WBlue~460-465nm89 lm/m19.5 lm/WWarm white3000K, CRI>901168 lm/m97.3 lm/WRGB534H-24Red~620-625nm102 lm/m28.5 lm/WGreen~520-525nm253 lm/m66.7 lm/WBlue~460-465nm89 lm/m19.5 lm/WNeutral white4000K, CRI>901224 lm/m102 lm/WRGB534W-24Red~620-625nm102 lm/m28.5 lm/WGreen~520-525nm253 lm/m66.7 lm/WBlue~460-465nm89 lm/m19.5 lm/WCool white5700K, CRI>901252 lm/m104 lm/W

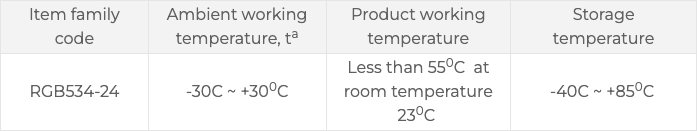

Temperature conditions
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007.
Cardboard box. Size 187×183×20mm
Cardboard reel. Size D=190mm h=15mm
LED strip length per reel — 5m

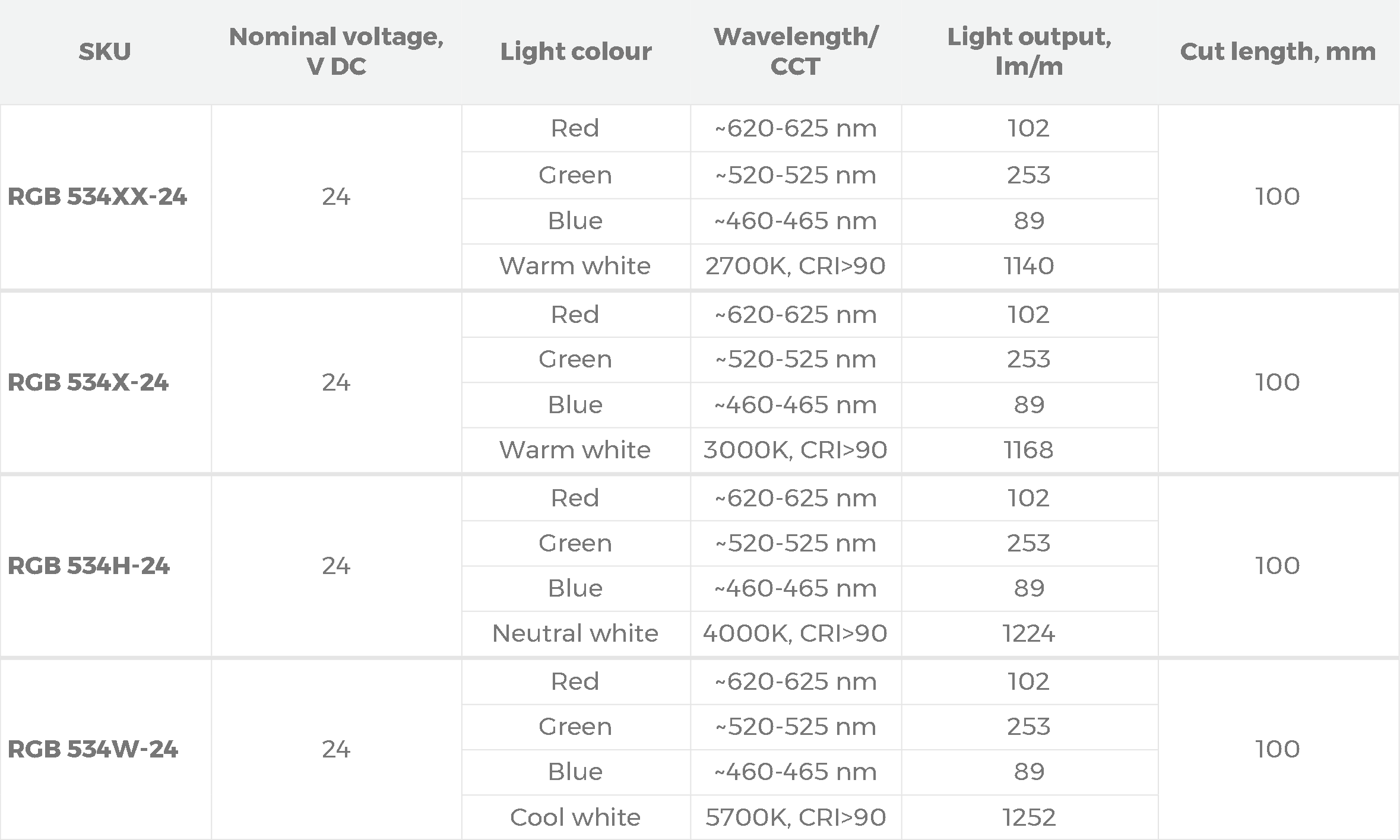

1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
