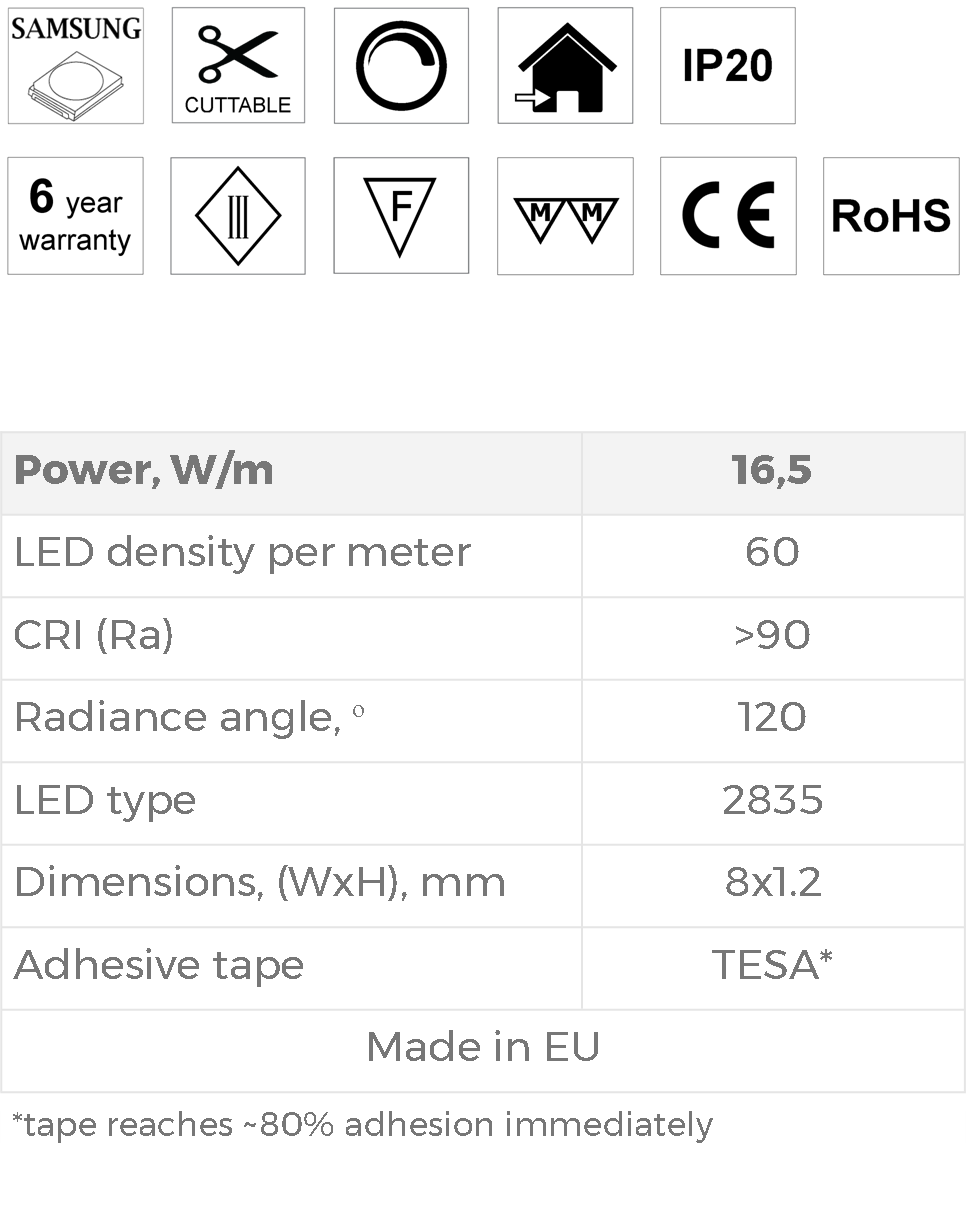

16W/m 60LED/m
Flexible, cuttable 16W/m LED strip, perfect for creating light installations.
- Flexible, cuttable 16W/m LED strip, perfect for creating light installations
- High quality light color conforming to latest EU lighting requirements
- Product tested in certified laboratories
- High quality Samsung LEDs
- LED strip made in EU
- 6 year manufacturer's warranty (L80B10 ~55,000 hrs. at 55°C LED strip temperature)
Electrical data
Item family codeNominal voltageType of currentNominal current1Rated power Pon11660S1212 VDC1.38 A/m16.5 W/m1660S2424 VDC0.69 A/m16.5 W/m

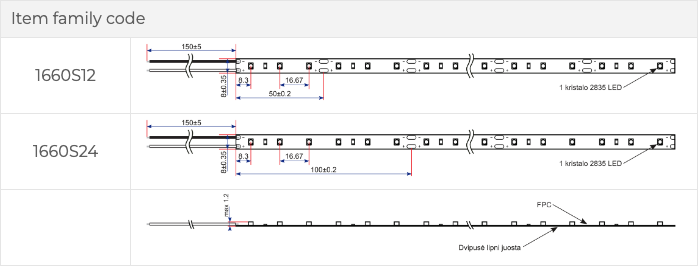

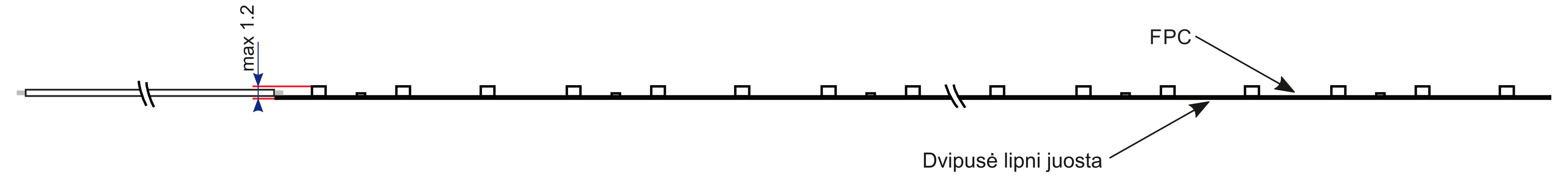

Dimensions
Item family code: 1660S12, 1660S24

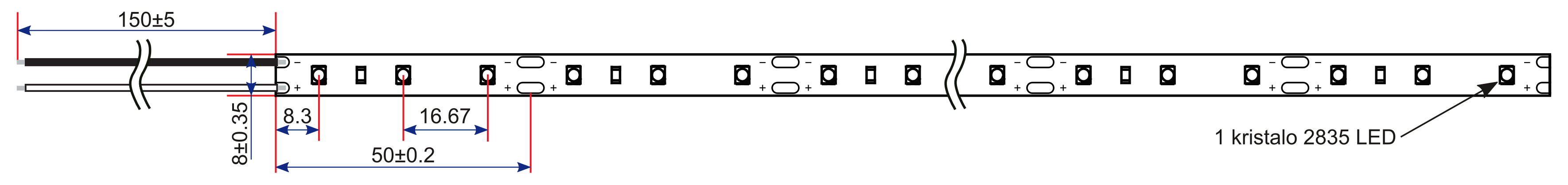

12V LED strip can be cut every 50 mm

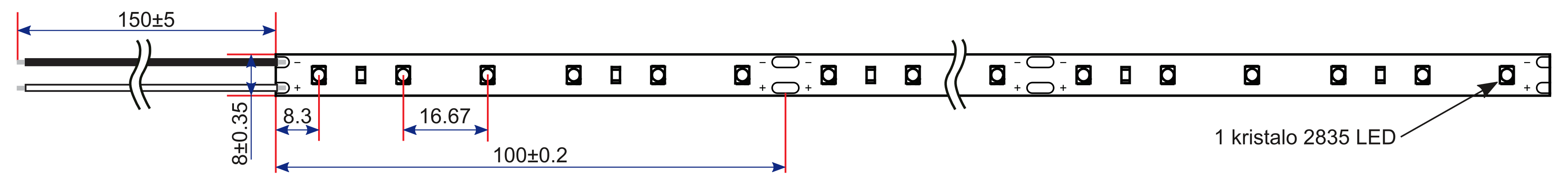

24V LED strip can be cut every 100mm
Wires are soldered at both ends of reel in typical product assembly

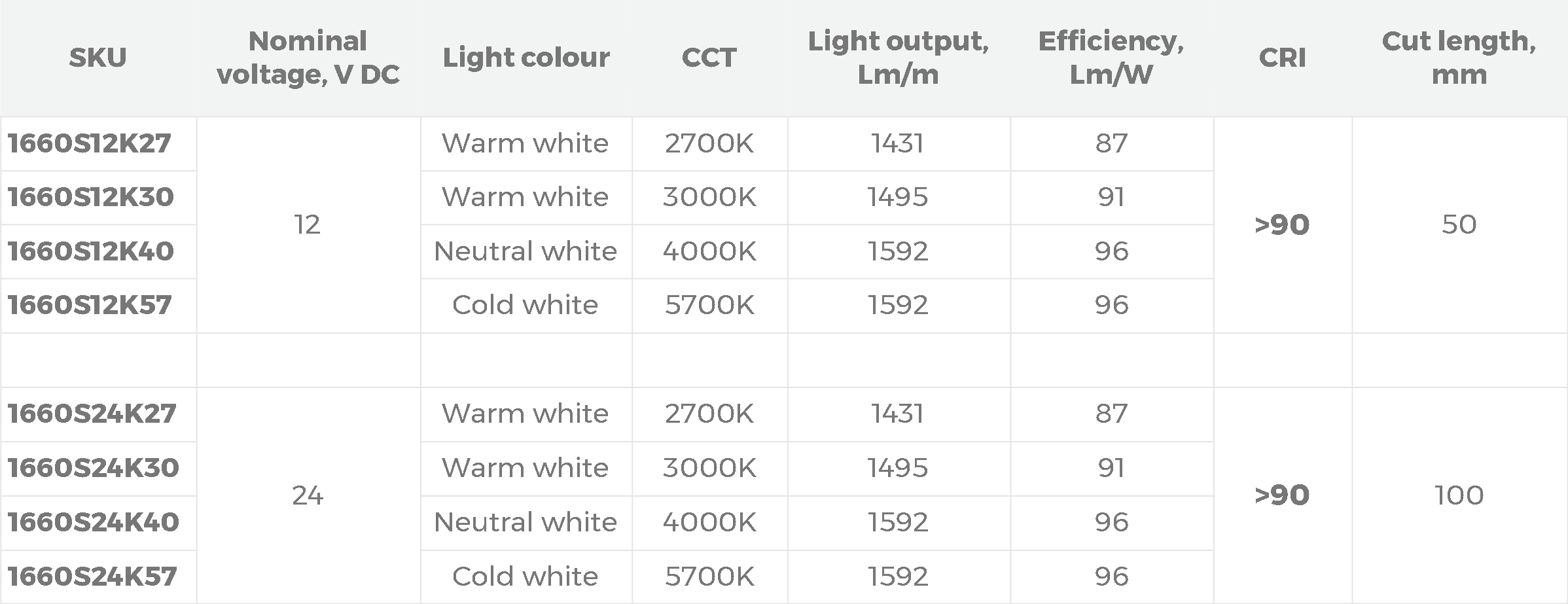

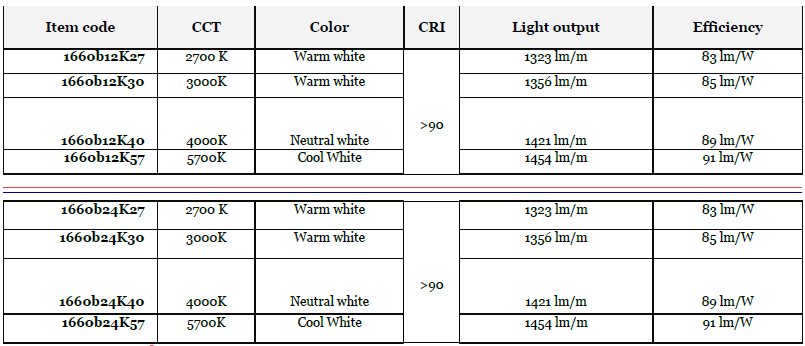

Photometric data
Item codeCCTColor descriptionCRIUseful luminous flux Φuse2Efficiency21660S12K272700KWarm white>901431 lm/m87 lm/W1660S12K303000KWarm white>901495 lm/m91 lm/W1660S12K404000KNeutral white>901592 lm/m96 lm/W1660S12K575700KCool White>901592 lm/m96 lm/W1660S24K272700KWarm white>901431 lm/m87 lm/W1660S24K303000KWarm white>901495 lm/m91 lm/W1660S24K404000KNeutral white>901592 lm/m96 lm/W1660S24K575700KCool White>901592 lm/m96 lm/W

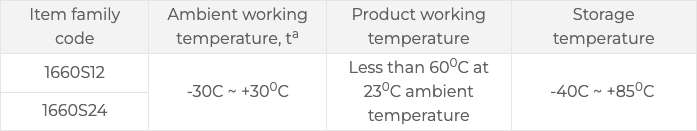

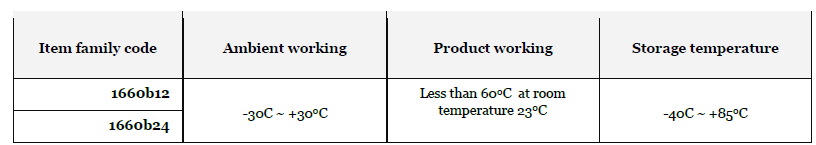

Temperature conditions
Standards and declarations of conformity
Declarations of conformity: CE (RoHS is part of CE)
Meets standards: LST EN 60598-1:2015+AC:2016+A1:2018 (9.2.7cl.,9.2.8cl.), EN 60068-2-14:2009 (IEC 60068-2-14:2009), EN 62031:2008+A1:2013+A2:2015.
Important: Product is assembled using LEDs that have been tested according to LM-80 for no less than 10,000 hours.

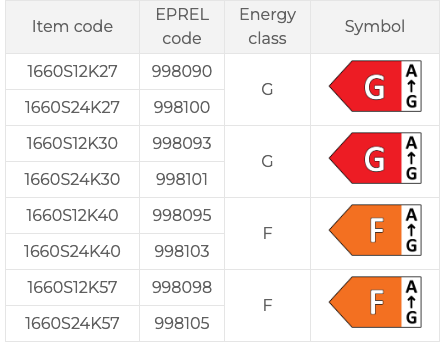

Energy label and marking
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007.
Packaging: Cardboard box. Size 120*121*20mm
Cardboard reel. Size D=118mm h=15mm
Alternative packaging: Cardboard box. Size 180*182*20mm
Cardboard reel. Size D=178mm h=15mm
LED strip length per reel—5 meters
Note: installation instructions are included in every box
All information is provided considering 1 meter length. Real life performance may fluctuate due to tolerances in components used in manufacturing.
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
