18W/m 120LED/m
Flexible, cuttable 18W/m LED strip, perfect for creating light installations.
- Flexible, cuttable 18W/m LED strip, perfect for creating light installations
- High quality light color conforming to latest EU lighting requirements
- Product tested in certified laboratories
- High quality Samsung LEDs
- LED strip made in EU
- 6 year manufacturer's warranty (L80B10 ~55,000 hrs. at 55°C LED strip temperature)

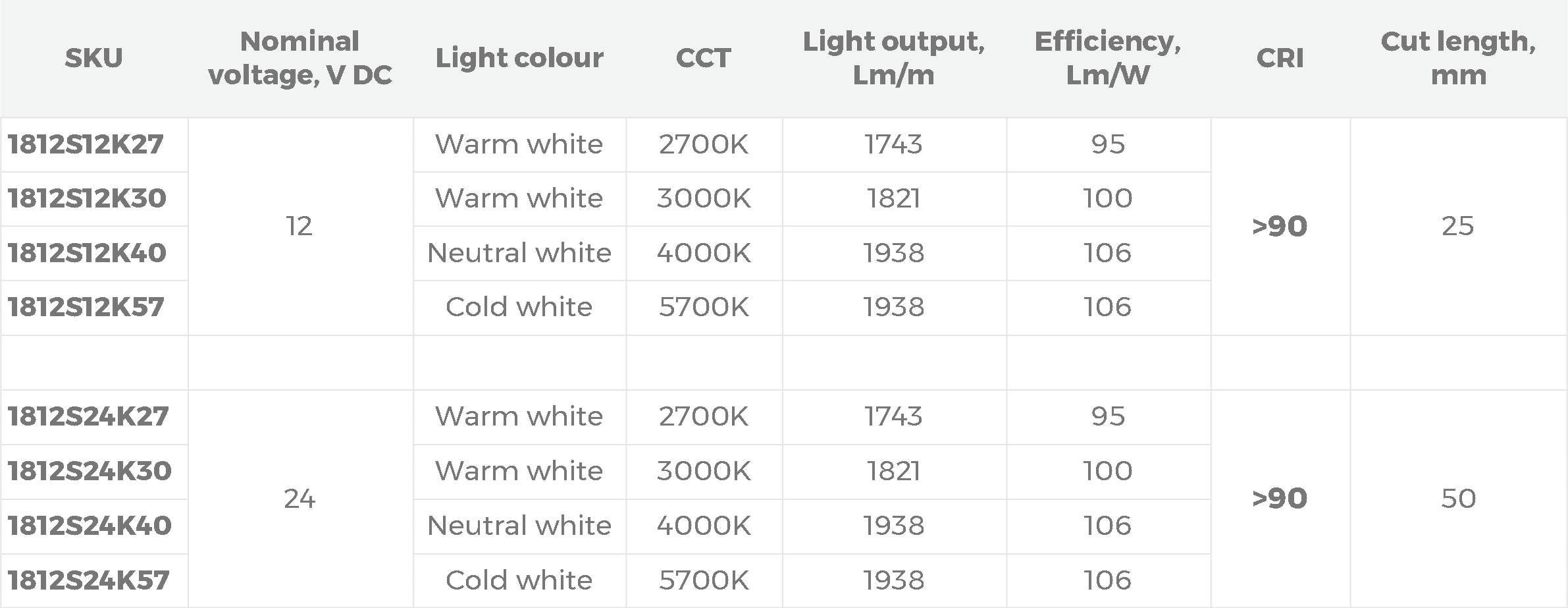

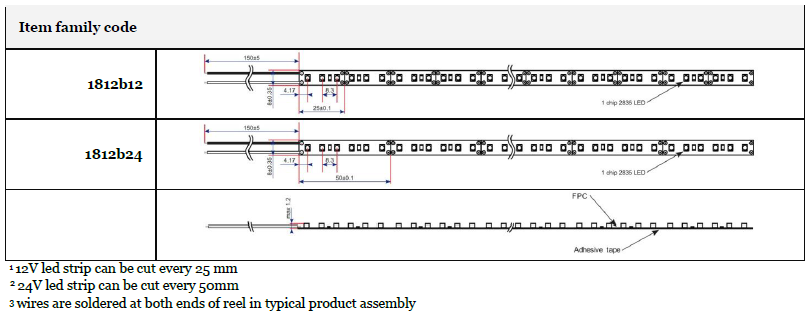

1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
