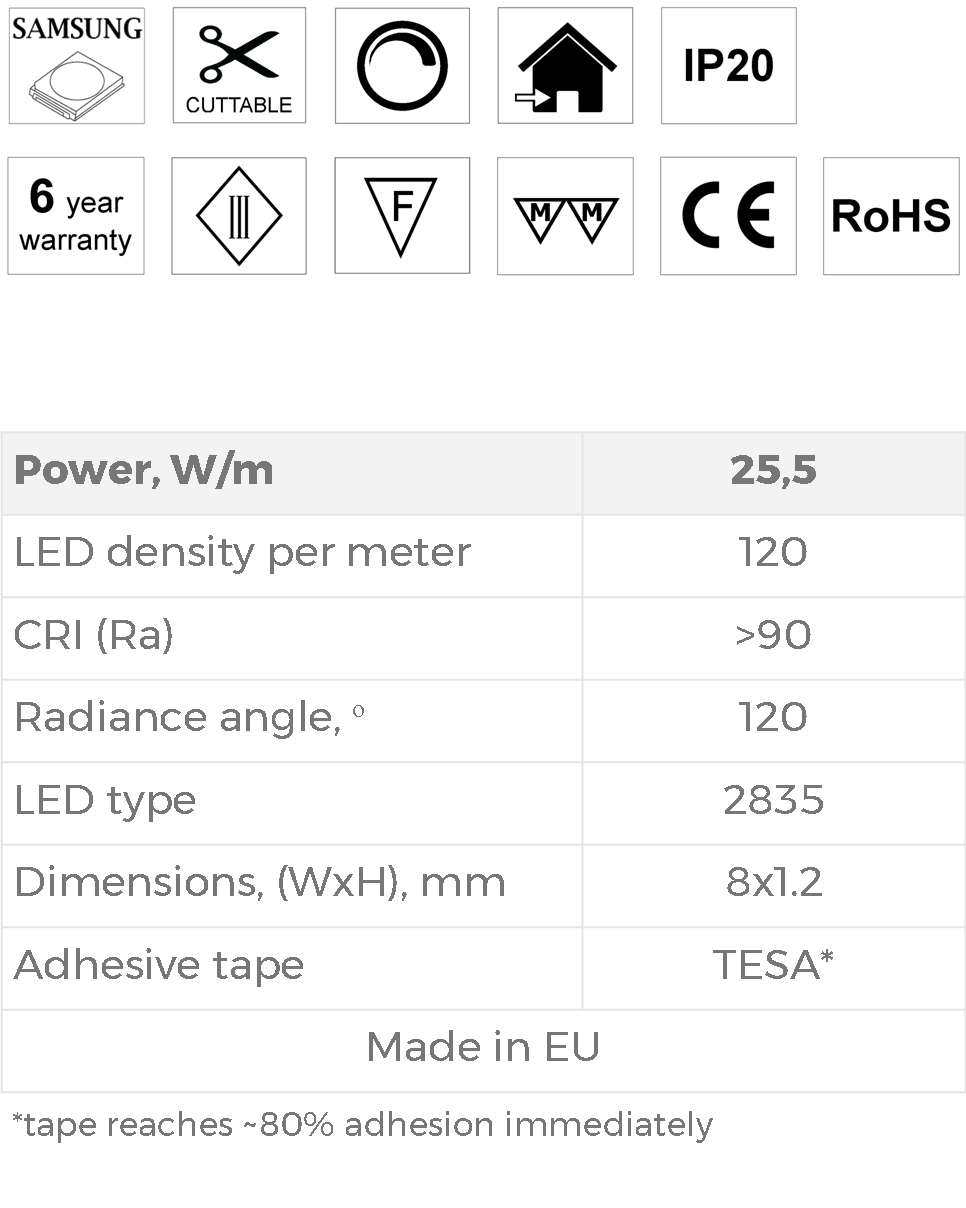

25W/m 120LED/m
Flexible, cuttable 25W/m LED strip, perfect for creating light installations.
- Flexible, cuttable 25W/m LED strip, perfect for creating light installations
- High quality light color conforming to latest EU lighting requirements
- Product tested in certified laboratories
- High quality Samsung LEDs
- LED strip made in EU
- 6 year manufacturer's warranty (L80B10 ~55,000 hrs. at 55°C LED strip temperature)

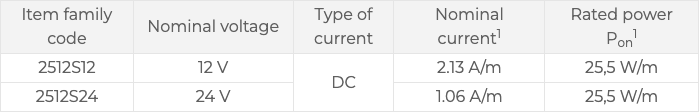

Electrical data
Item family codeNominal voltageType of currentNominal current1Rated power Pon12512S1212 VDC2.13 A/m25.5 W/m2512S2424 VDC1.06 A/m25.5 W/m

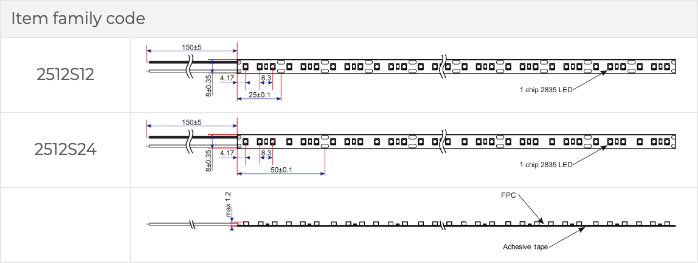

Dimensions
Item family code: 2512S12, 2512S24
12V LED strip can be cut every 25 mm
24V LED strip can be cut every 50mm
Wires are soldered at both ends of reel in typical product assembly

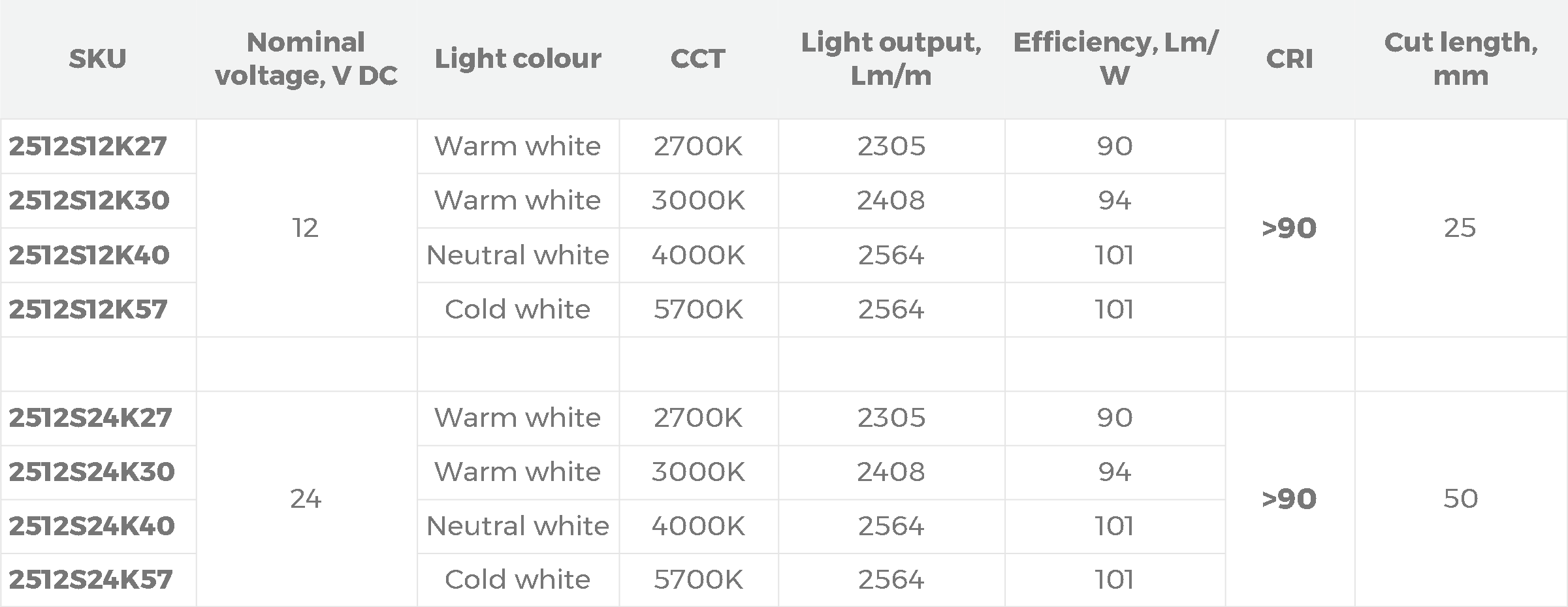

Photometric data
Item codeCCTColorCRIUseful luminous flux Φuse2Efficiency22512S12K272700KWarm white>902305 lm/m90 lm/W2512S12K303000KWarm white>902408 lm/m94 lm/W2512S12K404000KNeutral white>902564 lm/m101 lm/W2512S12K575700KCool White>902564 lm/m101 lm/W2512S24K272700KWarm white>902305 lm/m90 lm/W2512S24K303000KWarm white>902408 lm/m94 lm/W2512S24K404000KNeutral white>902564 lm/m101 lm/W2512S24K575700KCool White>902564 lm/m101 lm/W

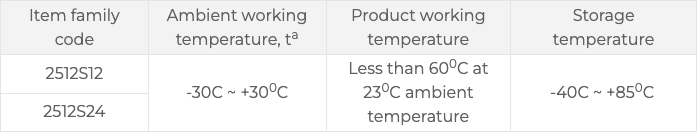

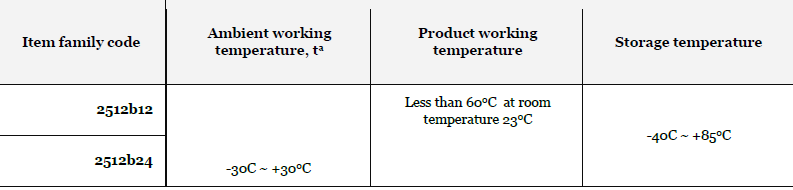

Temperature conditions
Standards and declarations of conformity
Declarations of conformity: CE (RoHS is part of CE)
Meets standards: LST EN 60598-1:2015+AC:2016+A1:2018 (9.2.7cl.,9.2.8cl.), EN 60068-2-14:2009 (IEC 60068-2-14:2009), EN 62031:2008+A1:2013+A2:2015.
Important: Product is assembled using LEDs that have been tested according to LM-80 for no less than 10,000 hours.

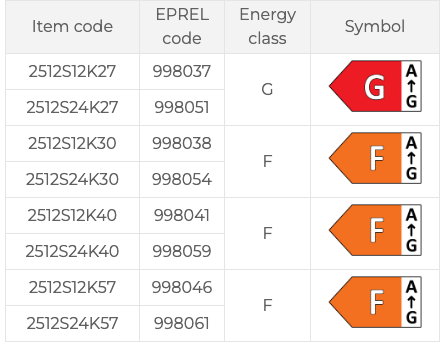

Energy label and marking
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007.
Packaging: Cardboard box. Size 120*121*20mm
Cardboard reel. Size D=118mm h=15mm
Alternative packaging: Cardboard box. Size 180*182*20mm
Cardboard reel. Size D=178mm h=15mm
LED strip length per reel—5 meters
Note: installation instructions are included in every packaging
All information is provided considering 1 meter length. Real life performance may fluctuate due to tolerances in components used in manufacturing.
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
