VIP 12W/m
High quality 12W/m LED strip with Samsung LEDs and integrated current stabilizers, ensuring uniform brightness even when connecting up to 12m from one end.
- Flexible, cuttable 12W/m LED strip, designed for lighting installations
- Current stabilizers ensure uniform brightness even when connecting 12m of strip from one end
- High quality light color conforming to latest EU lighting requirements
- Product tested in certified laboratories under various conditions
- High quality Samsung LEDs
- LED strip made in EU
- 6-year manufacturer's warranty (L70 >54,000 h)
- IP20 and IP67 ratings available
Electrical data
Item family codeNominal voltageType of currentNominal currentRated power1212D2424 VDC0.5 A/m12 W/m

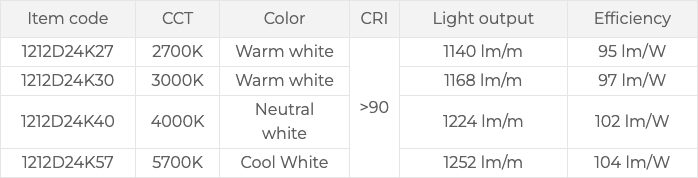

Photometric data

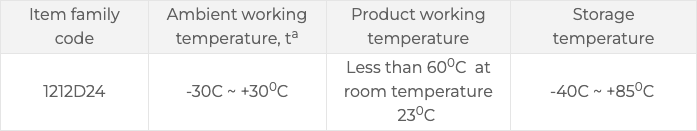

Temperature conditions
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007.
Cardboard box. Size 187*183*20mm
Cardboard reel. Size D=190mm h=15mm
LED strip length per reel—5m

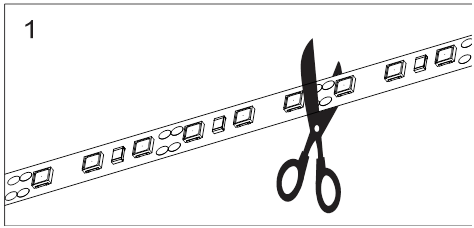

1. Cut the required amount of LED strip (see cut recommendations in Table 1).

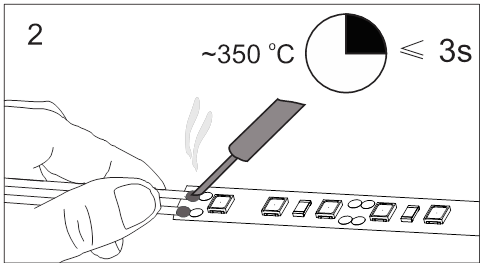

2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.

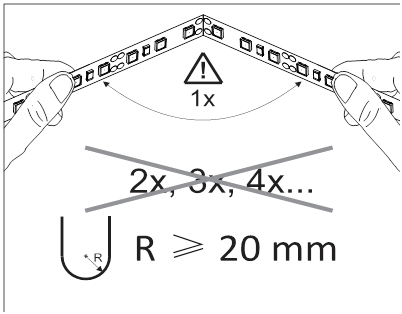

Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.

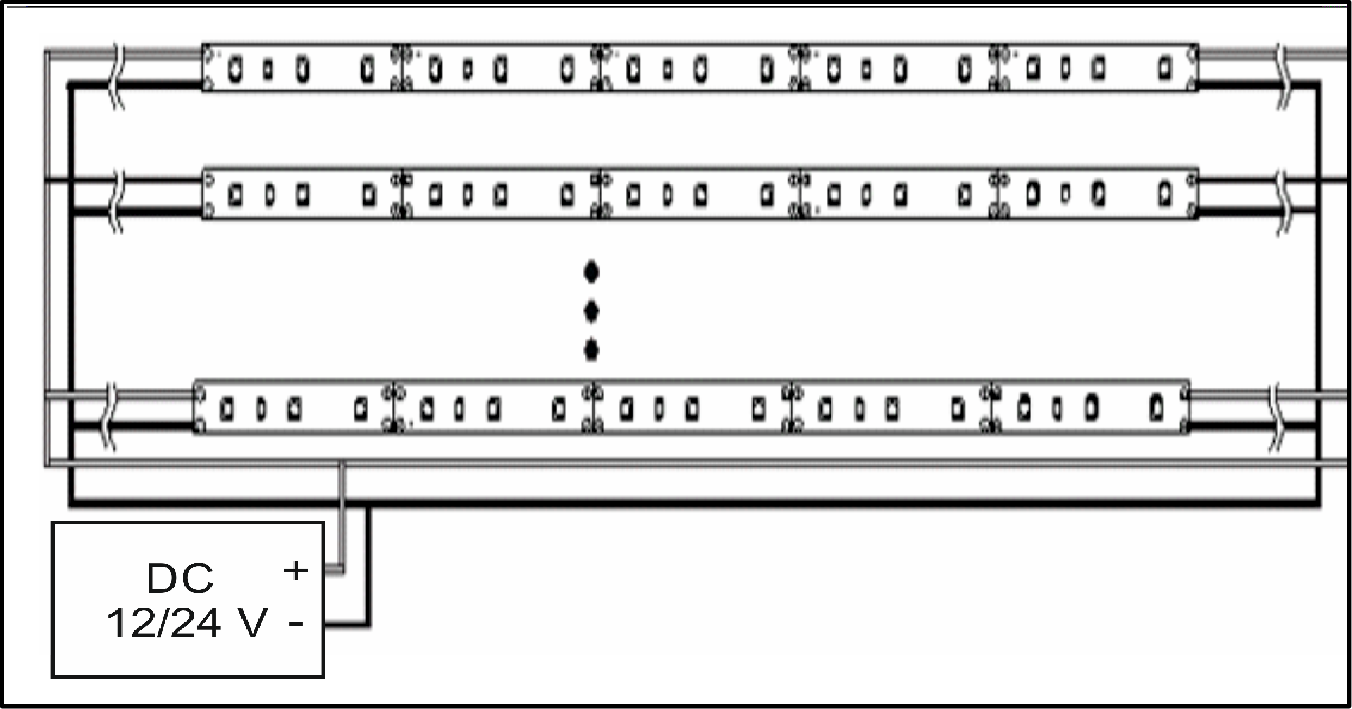

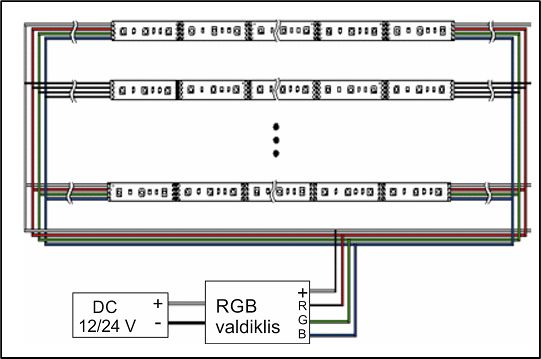

Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
